1.8m Galvanised Pvc Coated Security Commercial Chain Wire Fence
Chain wire fence product description
Chain wire fence provides extensive reliability and high security,
all at a low cost. It’s durability comes from it’s galvanized heavy
gauge steel core. It consists of steel wires woven together to form
a diamond-patterned mesh fence.
To protect the steel from rust or corrosion, each steel wire is
zinc coated through hot-dip galvanization.
Chain wire fence specifications
| Galvanized chain wire fence |
| Mesh | Wire gauge | Width | Length |
| 1" | BWG11,12,13,14 | 0.5--4m | 0.5--25m |
| 1-1/2" | BWG8,9,10,11,12,13 | 0.5--4m | 0.5--25m |
| 2" | BWG8,9,10,11,12,13 | 0.5--4m | 0.5--25m |
| 2-1/2" | BWG8,9,10,11,12 | 0.5--4m | 0.5--25m |
| 2-1/4" | BWG8,9,10,11,12 | 0.5--4m | 0.5--25m |
| 2-3/8" | BWG8,9,10,11,12 | 0.5--4m | 0.5--25m |
| 3" | BWG8,9,10,12 | 0.5--4m | 0.5--25m |
| PVC coated chain wire fence |
| MESH | WIRE GAGUE | WIDTH | LENGTH |
| 1" | BWG11,12,13,14 | 0.5--4m | 0.5--25m |
| 1-1/2" | BWG8,9,10,11,12,13 | 0.5--4m | 0.5--25m |
| 2" | BWG8,9,10,11,12,13 | 0.5--4m | 0.5--25m |
| 2-1/2" | BWG8,9,10,11,12 | 0.5--4m | 0.5--25m |
| 2-1/4" | BWG8,9,10,11,12 | 0.5--4m | 0.5--25m |
| 1-3/8" | BWG8,9,10,11,12 | 0.5--4m | 0.5--25m |
| 3" | BWG8,9,10,12 | 0.5--4m | 0.5--25m |
Chain wire fence type:
(1) Knuckle-Knukle:
The wire is knuckled at both ends and abbreviated as(KK)
(2) Knuckle-Barbed:
The wire is knuckled at the bottom and twisted into a barbed
selvedge at the top and is abbreviated as (KB)
(3) Barbed-Barbed:
The wire is twisted in to a barbed selvedge at both ends and is
abbreviated as(BB)

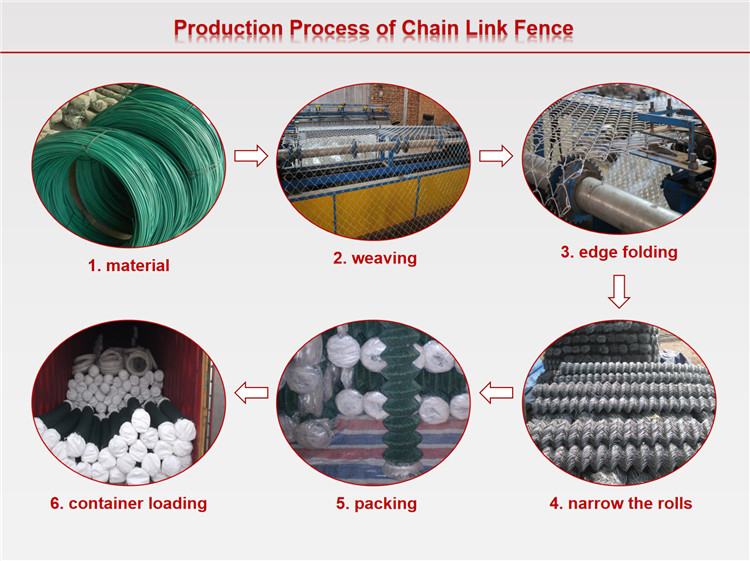

Chain wire fence production process:

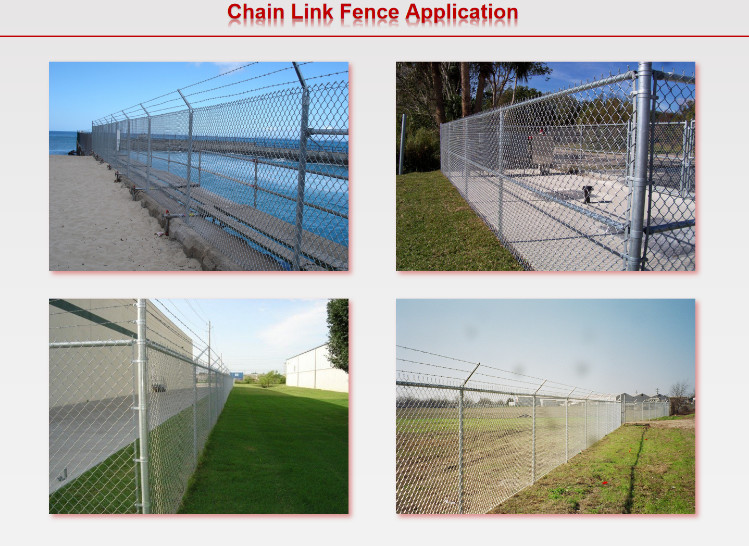

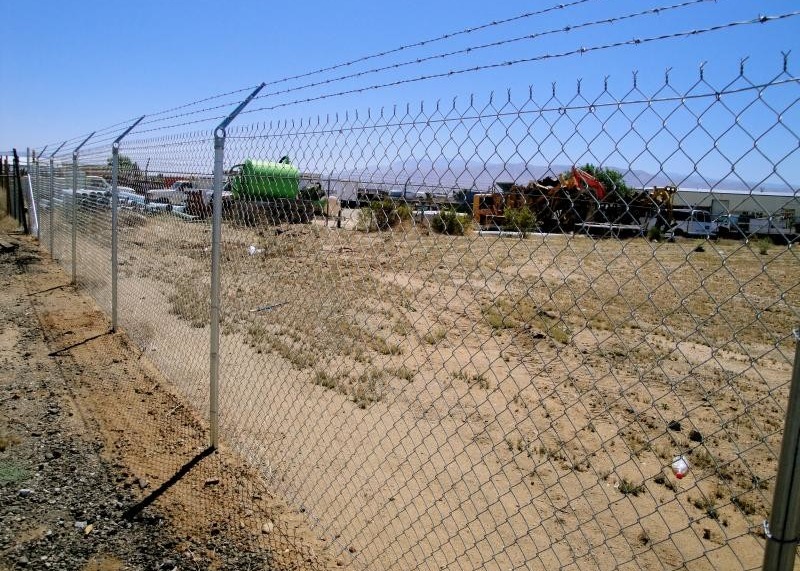

Chain wire application:
This product is widely used in filters baskets, air filtration
units,medicine ,building
cement, mechanical equipment protection, crafts manufacturing,high
grade sound box nets, expressway fence,decorative ceilling,highway
fence , walkway
Chain wire fence features:
- Galvanised Chain Mesh to protect against rust and corrosion.
- Complete range of accessories available.
- Black or Green PVC Coated Chain Mesh.
- Barbed & Razor wire for increased security protection.
- Custom design gates to match fencing and clients specifications.
Chain wire fence packing:
Chain wire fence gate:
