1.65m Length Metal 2.04kg Hot Dip Galvanized Steel Star Picket
Star Picket description
Star Picket, Austrilian Style, without teeth, the main product of
star pickets, features its three-pointed star shaped cross section.
The tapered ends make it easy to be installed and the plain head is
engineered for easy hammering the post into ground. Due to its high
quality and stability, it is popular with most Australians, New
Zealanders
Specification of star picket
| Star picket standard specification |
| Length (cm) | Hole number | Hole distance (mm) | Weight (kg/pc) 2.04kg/m | Weight (kg/pc) 1.86kg/m | Weight (kg/pc) 1.58kg/m |
| 45 | 2 | 25/30,100 | 0.918 | 0.837 | 0.711 |
| 60 | 3 | 25/30,120,120 | 1.224 | 1.224 | 0.948 |
| 90 | 5 | 25/30,120,120,120,120 | 1.836 | 1.836 | 1.422 |
| 135 | 11 | 25/30,100,100,100,60,120,75,75,80,70 | 2.754 | 2.511 | 2.133 |
| AUS150 | 11 | 25,100,100,100,60,120,75,75,80,70 | 3.060 | 2.790 | 2.37 |
| NZL 150 | 7 | 30,204,178,152,27,127,127 | 3.060 | 2.790 | 2.37 |
| AUS165 | 14 | 25,130,100,100,100,60,120,75,75,80,75,75,60,95 | 3.366 | 3.069 | 3.366 |
| NZL 165 | 7 | 30,204,178,152,127,127,127 | 3.366 | 3.069 | 3.366 |
| AUS180 | 14 | 25,130,100,100,100,60,120,75,75,80,70,75,60,95 | 3.672 | 3.348 | 2.844 |
| NZL 180 | 8 | 30,204,190,152,127,114,100,100 | 3.672 | 3.348 | 2.844 |
| 210 | 7 | 25,275,300,300,300,300 | 4.284 | 3.906 | 3.318 |
| 240 | 7 | 25,275,300,300,300,300 | 4.896 | 4.464 |

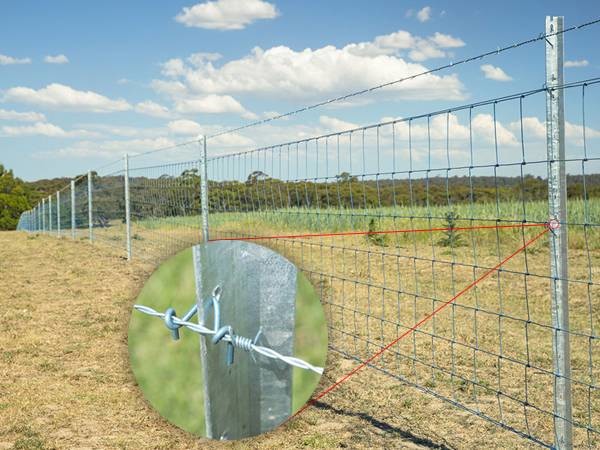

Star picket Applications
1. Posts for protective wire mesh fencing of expressway & railway;
2. Wire mesh fence posts for security fencings of beach farming,
fish farming, and salt farm;
3. Wire mesh fence posts for security of forestry and forestry
source protection;
4. Fencing posts for isolation and protecting husbandry and water
sources;
5. Fencing posts for gardens, roads, and houses.
Structure classification of star picket
* According to the surface: * Y post with holes. There are
consistent holes on the surface, which is commonly used to
fastening the
steel wire lines.
* Y post with teeth. There is a consistent teeth-shaped gap on the
surface, which is easy to fasten the wire mesh panels.
* According to the end types:
* Tapered ends Y post. It is easy to install.
* Plain head Y post. It is easy for hammering the post into the
ground.
Star picket hole space drawing
Advantage of star picket
1.This kind of fence post enjoys an improved rate of 30% in its
mechanical property and physical propery compared with common
steel posts with same section size;
2.Have nice appearance. Easily used, with a low cost;
3.Long service life.

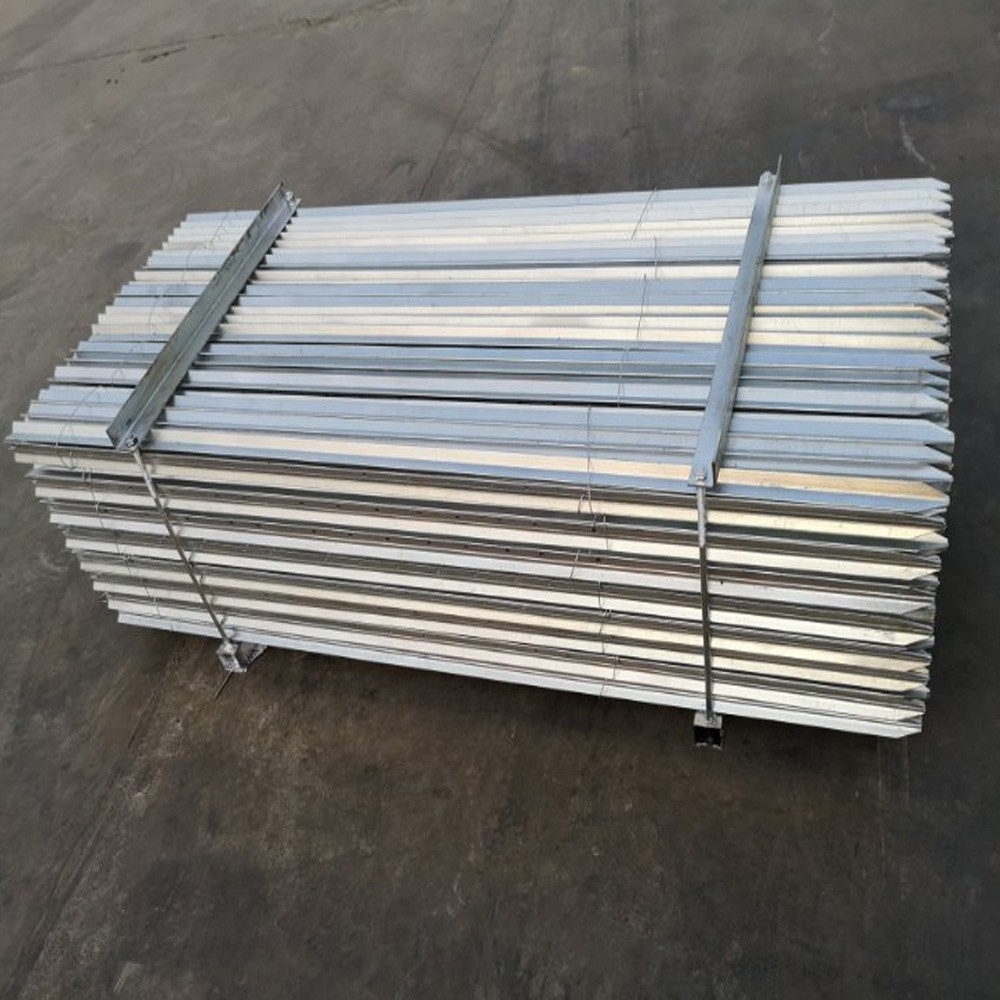

Star picket packing and loading
