18m Portable Horse Stall Panels And Yard Accessories Cattle Yard
Victoria Steel Cattle Corral Panel
Steel Cattle Corral Panel Introduction
Cattle yard panel is usually called cattle panel, horse
panel,livestock panel,corral panel etc.
It is made with welded hot dip galvanized pipes for the use of
fencing livestocks, such as cattle,cow,bull,calves,Dairy
sheep,goat,dog.
Jiangrui supply quality cattle panels, horse panels, sheep panels
and custom made panels suitable for all livestock.
All products are manufactured using high quality pre-galvanised RHS
& pipe.
A versatile cattle panel with rounded edges that can be used as a
cattle panel, horse panel or sheep panel.
Extra C and L lugs can be supplied to integrate panels into an
existing yard.
Steel Cattle Corral Panel Specification
1>round style
| material | pre hot dipped galvanized steel pipe |
| finishing(zinc coating) | more than 15 microns |
| Height x Length | 1800mm x 2100mm |
| vertical pipe | 32mm O.D x1.6mm thickness 42mm O.D x 1.6 mm thickness |
| horizontal rails | 32mm O.D x1.6mm thickness 42mm O.D X 1.6mm thickness (6 round rails) |
| Welding | Fully welded post brackets |
| welds | bull bars are fully welded, each weld is protected with epoxy paint |
2>square tube style
| material | pre hot dipped galvanized steel pipe |
| finishing(zinc coating) | mor than 15 microns |
| HeightxLength | 1800mm x 2100mm |
| vertical pipe | 50 x 50mm RHS x 1.6mm thickness 40 x 40mm RHS x 1.6mm thickness |
| horizontal rails | 50 x 50mm RHS x 1.6mm thickness 40 x 40mm RHS x 1.6mm thickness (6 square rails) |
| Welding | Fully welded post brackets |
| welds | bull bars are fully welded, each weld is protected with epoxy paint |
3> oval tube style
| material | pre hot dipped galvanized steel pipe |
| finishing(zinc coating) | mor than 15 microns |
| HeightxLength | 1800mm x 2100mm |
| vertical pipe | 50 x 50mm RHS x 1.6mm thickness 40 x 40mm RHS x 1.6mm thickness |
| horizontal rails | 30x60mm oval rail x 1.6mm thickness 40x80mm oval rail x 1.6mm thickness 40x120mm oval rail x 1.6mm thickness (6 oval rails) |
| Welding | Fully welded post brackets |
| welds | bull bars are fully welded, each weld is protected with epoxy paint |

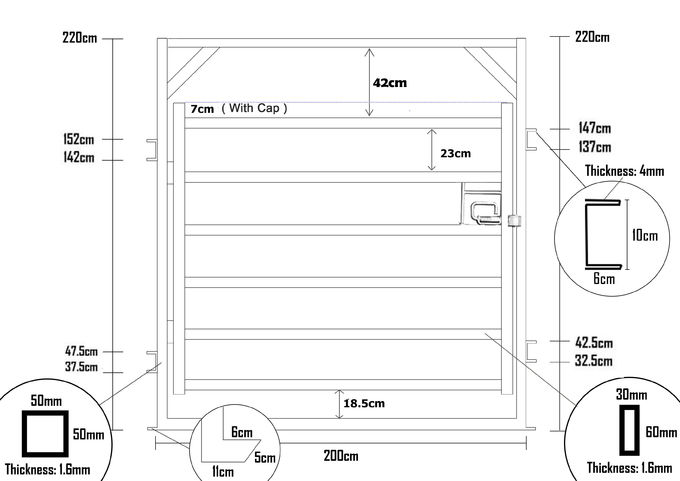

4>cattle panel gate
| Height x Length: | 2200mm x 2000mm |
| Frame: | Horizontal & Vertical pipe: 50 mm x 50 mm RHS x 1.8 mm thick with fully welded caps |
| Cattle Gate Horizontal rail: | 40 mm x 80 mm x 1.6mm thick x 6 oval rails |
| Finishing: | hot dipped galvanized ,zinc coating:more than 15 microns. Fully welded oval pipes, post &brackets ,heavy duty hinges |
Steel Cattle Corral Panel Uses & Type
Steel Cattle Corral Panel Gates Type
01> 2.1 Gate In Bow
02> 4.1 Double Gate In Bow
04> Man Gate In 2.1 Panel
05> Swing Race Gate
06> Sliding Race Gate with auto slam catch
07> Adapter Post 4 Way
08> Race Bow
09> Auto close man gate
10> Ride Through High Bow & Gate
Packing
1. fence panel:plastic film+wood/metal pallet.
2. fence post:every post pack with a plastic bag(the cap is covered
well on the post)+metal pallet.
3. accessory:small plastic bag+carton box.
4. we can also do as your request.
Shipping
(1) Factory directly sale.
(2) It can customized according to the requirements or drawings.
(3)With the fastest speed of delivery
(4)Answer questions in a timely
(5)Enquiry will be replied in 2 hours.
(6)If you have any question,please tell me freely.
RFQ
Q1.manufacturer or trading company
A: We are a manufacturer having more than 6 years of production
experiences.
Q2.Minimum of order
A: One set can be met ,but the price will be higher.
Q3.Can you arrange the shipment in busy season
A: We ship many years,we having good relationship with ship
lines.Our products can be shipped in priority.
