6x9.5ft Pvc Coated Steel Welded Construction Temporary Site Fencing
Temporary Site Fencing introduction:
Temporary site fencing is an ideal solution for temporary site
security. The panels are extremely resilient and are suitable for
multiple uses. LinkLand Temporary Fencing easy to construct into a
system and can be assembled to form a straight run of panels or
joined together so that it forms an enclosure around a specific
area.
Temporary Site Fencing Size
| Fence | Specifications |
| Panel Height(mm) | 4ft, 6ft, 8ft |
| Panel Width(mm) | 8ft, 9ft, 9.5ft,10ft |
| Opening (mm) | 50x100mm,75x100mm,55x110mm,etc |
| Wire Diameter(mm) | 3mm,3.5mm,4mm |
| Frame square tube | 25x25mm, 30x30mm |
| Horizontal square rail | 20x20mm, 25x25mm |
| Fence feet | 863x89x8mm, 750x100x7mm |
| Top pins | Top clip to connect two panels together |
| Finishing of fence | Electric galvanized then powder or hot dipped galvanized then
powder coated |
| Color | Blue, green, yellow,red,etc |
| Note: The fence can be customized according to your required if
above specification is not satisfied with you. |
Temporary Site Fencing Surface Treatment :
• electro-galvanized
• hot-dipped galvanized
• pvc coated
• powder coated
It can effectively prevent ultraviolet radiation of acid rain
corrosion, and has excellent rust resistance.
Temporary Site Fencing details:

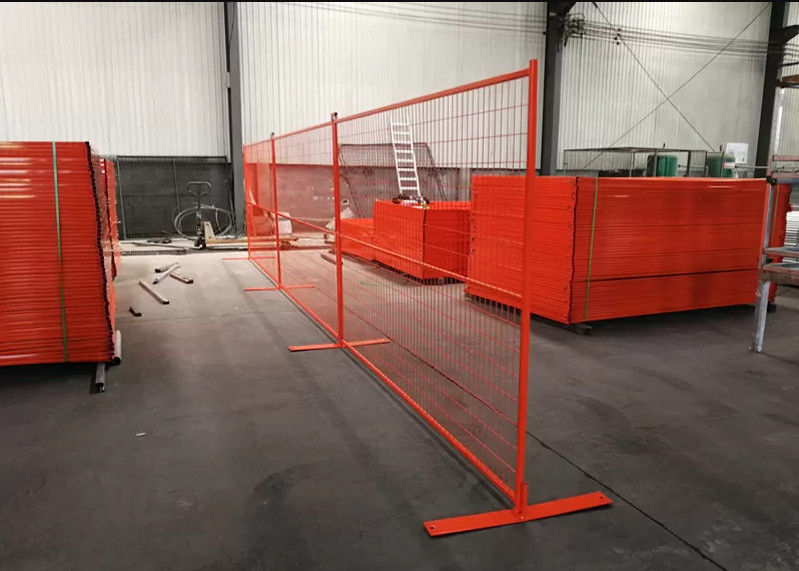

Fence Panels
This Temporary Fencing Panel is made from steel and it's common
surface treatment is galvanized then powder coated , which consists
of a zinc coating and powder coated to help prevent rust. The panel
has a sturdy outer frame which is formed from 25x25mm or 30x30mm
outside diameter square steel tubes. The panel also contains a
horizontal square rail infill which helps to make it
wind-resistant, so it’s stability can be maintained even in open
areas. The apertures within the mesh are also smaller than a
Standard Temporary Fencing Panel, which makes the panel more
difficult to climb.
Posts
The Canada Temporary Fence panels are attached with high strength
square posts. The common posts outside diameter are 25x25mm and
30x30mm with thickness of 0.8 to 2.0mm. Panels are fixed to steel
posts using sturdy top pins.

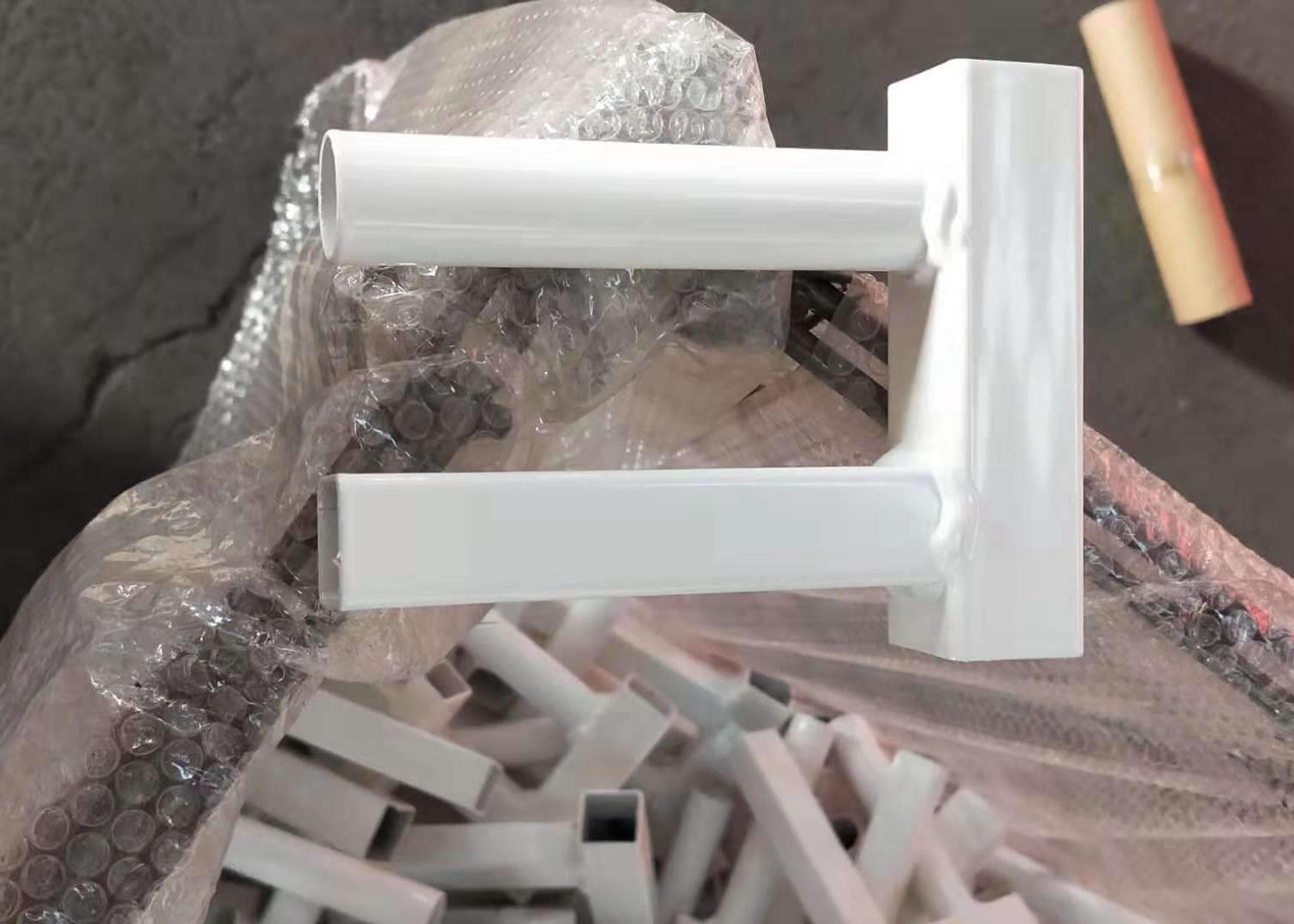

ACCESSORIES
Temporary Site Fencing Product applications
- Garden Centres
- Renovations
- Property Restoration
- Site Security
- Construction Sites
Temporary Site Fencing drawing:
