Eco Friendly Durable Powder coated Black Color Steel Tubular
Fencing
Product Description
Detailed introduction of Eco Friendly Durable Powder coated Steel Tubular Fencing:
Our Eco Friendly Durable steel tubular fencing Panels are perfect for securing commercial properties and for
security around your home and residential property.
All our Security Fence products are a 100% professional grade,
industry standard products, and are used and sold by fencing
installers and fencing retailers, Australia wide.
These heavy duty steel security panels are strong and long-lasting.
Feature pressed and pointed spear tops for added security.
Panels are 1.8m high x 2.4m wide, Powder Coated Black.
Made above industry standards - Strong horizontal rails are 40x40mm
square x 1.8mm thick (not the 1.5mm/1.6mm thick).
Vertical tubes are 25x25mm square and the wall thickness is the
industry best practice of 1.2mm thick. (Not thinned down to 1mm)
Vertical tubes are spaced with a 115mm gap between each tube.
(140mm centre to centre of vertical tubes).
Made from galvanized steel. (galvanized inside and out).
All welds are with 'non-rust' silicone bronze welding wire.
Panel is powder coated Black, with a durable baked on finish.
Vertical tubes are 25x25mm.
Horizontal rails are 40x40mm.
Characters of Eco Friendly Durable steel tubular fencing:
Horizontal pipe, vertical pipe and column three parts are different
specifications of the steel tube, two layers anticorrosive
processing, good anti-corrosion performance, service life is long,
after electrostatic spraying, can amount to 15 years, and to save
the cost product maintenance updates.
Brief Specification of Eco Friendly Durable steel tubular fencing:
| Panel Height | 2100mm(standard) |
| Panel Configuration | Vertical pickets are inserted through punched rails with each
picket welded at the top and bottom, of both the top and bottom
rails. |
| Picket profile | 25*25*1.2mm Square Hollow Section(SHS). |
| Picket spacing | 140mm centre-to-centre of each vertical picket. |
| Picket top profile | Crimped(round) spear top. |
| Rails | 40*40*1.6mmSHS. |
| Panel brackets | 1-piece heavy duty,hot dipped galvanised security bracket(for
brackets per panel). |
| Fasteners | Tamper proof Irius Tek screws |
| Intermediate posts | 65*65*2.5mm post(3000mm long) |
| Gate frame | Stiles and Rails 65*65*1.6mm SHS(three horizontal rails) |
| Gate locking hardware | Heavy duty ∅20mm slide-bolt with Broadhurst Lockbox,The slide-bolt
is lockable in both the open and closed positions. Heavy duty ∅16mm slide-bolt (pad lockable). Perforated mesh welded to the outside of the gate preventing the
gate hardware being used as climbing points. |
| Gate hinging | Greasable tapered roller bearing(bottom) and sealed ball bearing
hinging(top) With ability to swing 180°. |
| Gate posts | 100*100*4mm(3000mm long) for openings up to 3000mm. 150*150*5mm(3000mm long) for openings greater than 3000mm. |
| Post cap | Steel caps(powder coated) |
| Weld type | All welds are Silicon bronze which has superior corrosion
resistance to a standard mild steel weld. |
| Zinc coating | Pre-galvanised precision tube with a zinc coating mass of
275g/m²across the internal and external surfaces of the hollow
steel tube. |
| Higher corrosion environments | We would recommend the use of our zinc-rich epoxy primer under the
top coat to give much greater corrosion resistance. |
| Post footing | Fence posts ∅300mm*900mm deep using 20mpa concrete Gate posts ∅450mm*900mm deep using 20mpa concrete |

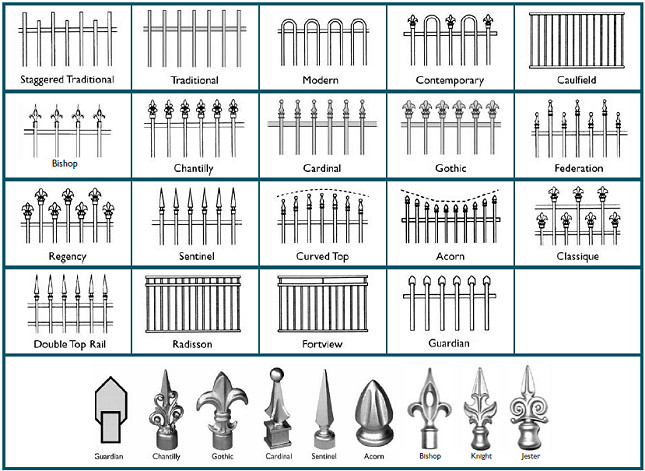

Other Types of Wrought Iron Fence:
