W3.66m Chain Link Construction Fence , H1.8m Temporary Chain Link Fence Panels

Ask Lasest Price
Brand Name :	AOBIAO
Model Number :	FSL-USTF-010
Certification :	CE ISO
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	2000 sets per week
Delivery Time :	25-30 days after receiving the deposit.

Add to Cart

Product Details
Company Profile

W3.66m Chain Link Construction Fence , H1.8m Temporary Chain Link Fence Panels

6' Tall By 12' Long Chain Link Temporary Construction Fence Panels

Temporary Construction Fence Panels Introduction:

Temporary Construction Fence Panels for Rent. All panels are 6' tall by 12' long chain link.

Temporary Construction Fence Panels size:

Panel Specification
Dimensions (H × W)	6' × 12' (equal to 1.8 × 3.66 m).
Wire diameter	9 ga/2.9 mm, 10.5 ga/2.7 mm, 11 ga/2.3 mm, 11.5 ga/2.4 mm, 12 ga/2.0 mm optional.
Mesh opening	2" (50 × 50 mm), 2.25" (57 × 57 mm), 2.4" (60 × 60 mm), 2.75" (70 × 70 mm) optional.
Frame O.D.	1.25"/32 mm, 1.5"/38 mm, 1.6"/40 mm round optional.
Brace	Cross, vertical, horizontal brace with 1"/2.54 mm round or the same with frame O.D.
Frame structure	360° full welded tubular frame.
Surface treatment	Hot dipped galvanized. Pre-galvanized.
Attached way	Mesh wrapped around the flat bar then connect with clamps. Galvanized wire wrapped with steel frame in a rather tension way.
Fence feet Specification
Material	Steel plate, steel solid rod, steel pipe.
Fence feet type	Square, oval, flat
Square/Oval feet Specification
Dimensions (H × W × H)	36" × 13.75" × 20" (915 × 350 × 200 mm) 30" × 18" × 20" (760 × 460 × 200 mm) optional.
Surface treatment	Hot dipped galvanized. Pre-galvanized.
Flat feet Specification
Dimensions (H × W × TH)	23.6" × 4.3" × 0.3" (600 × 110 × 8 mm) 35.4" × 3.0" × 0.25" (900 × 80 × 7 mm) optional.
Hole size O.D.	19 mm.
Interior round steel rod/pipe	30 mm O.D. × 150 mm H.
Exterior square steel rod/pipe	30 × 30 × 150 mm.
Rod space	30 mm.
Surface treatment	Hot dipped galvanized. Pre-galvanized.
Clamp Specification
Clamp center distance	80, 90, 100 mm optional.
Applied post O.D.	25, 28, 32, 38, 40, 42 mm optional.
Clamp TH	4 mm.
Bolt	Length available 100/60/40 mm with a 10 mm and 8 mm outer diameter.
Nut	15.9 mm, 17 mm optional.
Surface Treatment	Hot dipped galvanized. Pre-galvanized.
Weight	0.42 kg/set.
Accessory List	2 pieces clamps with 1 bolt and 1 nut.

W3.66m Chain Link Construction Fence , H1.8m Temporary Chain Link Fence Panels

Temporary Construction Fence Panels drawing :

W3.66m Chain Link Construction Fence , H1.8m Temporary Chain Link Fence Panels

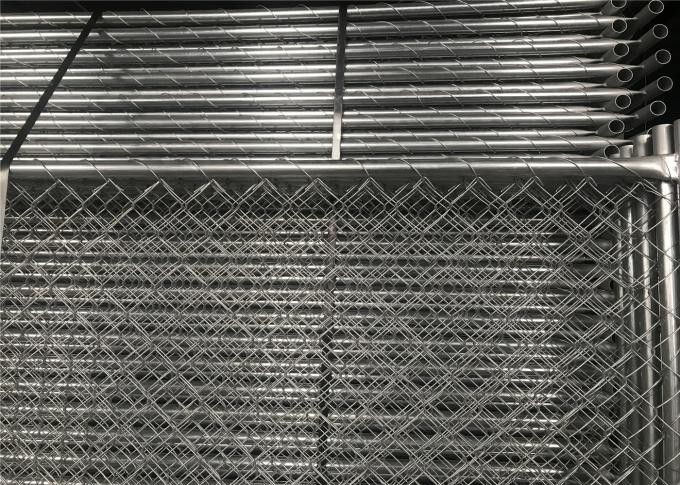

Temporary Construction Fence Panels detailed picture:

W3.66m Chain Link Construction Fence , H1.8m Temporary Chain Link Fence Panels

Features of Temporary Construction Fence Panels:

360° full welded tubular frame. All pipes are 360° full welding circled to make sure a firm fence structure. This can ensure that the temporary fencing is not damaged during the frequent moving process, and will not be corroded even in hostile environment.
Hand craft techniques manufacture. Panels are filled with galvanized chain link mesh and wrapped around the frame tube with tension bars and tension bands by hand in a rather tension way.
Another option sturdy attached way. Available flat bar the use clamps to connect the two adjacent panels.

Temporary Construction Fence Panels Packing:

1. rubber mat at the bottom of the pallet to avoid the pallet destroyed the panel.
2. metal corners to keep the pallet more strong and wood plate on the panel pallet.
3. the metal plate under the plastic bandage to a pressure for fence panel.
4. according your request

W3.66m Chain Link Construction Fence , H1.8m Temporary Chain Link Fence Panels
