6FT X 12FT Hot Dip Galvanized Chain Link Temporary Fencing Panels
Temporary Fencing Panels Introduction:
It is also called mobile fence mesh, temporary police. Our
temporary chain link fences are totally reached Australian
standards, which all are hot-dipped galvanized. They are popular in
Australia, American, England, We also can produce according to the
buyer's details drawing for it.
Temporary Fencing Panels drawing :
Temporary Fencing Panels size:
Chain Link Temporary Fence Specification |
| Low carbon steel |
| Hot dipped galvanized |
| 4ft, 6ft, 8ft or customized size |
| 10ft, 12ft, 14ft, or customized size |
| 2.5mm, 2.7mm, 3mm, 3.5mm, 4mm, etc. |
| O.D. 32mm, 33.4mm, 42mm, etc |
| O.D. 25mm or 32mm, etc. |
| 610x590mm, 762x460mm, etc |
| 50x50mm, 60x60mm, etc |
| Frame and middle pipe | Mesh size | W ire diameter | Surface Treatment | Panel Width | Height |
25x1.2/1.5mm 32x1.2/1.5mm
42x1.2/1.5mm
48x1.2/1.5mm | 50x50mm
60x60mm 70x70mm
75x75mm
100x100mm | 2.0mm 2.5mm 3.0mm 3.2mm 3.5mm 4.0mm | Galvanized and PVC coated or hot dipped galvanized | 2.00m
2.40m 2.50m 2.90m 3.65m | 1800mm 2000mm |
| 2100mm |
| 2400mm |

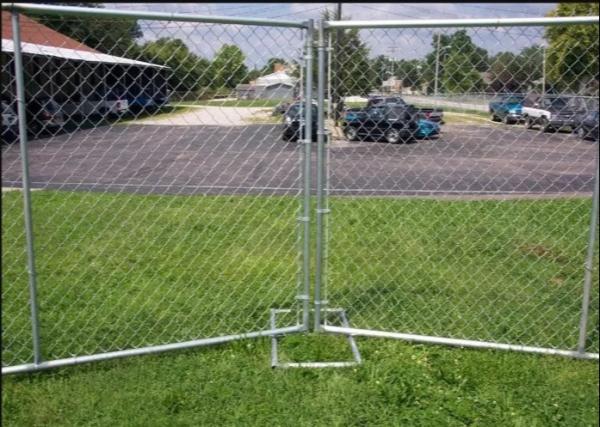

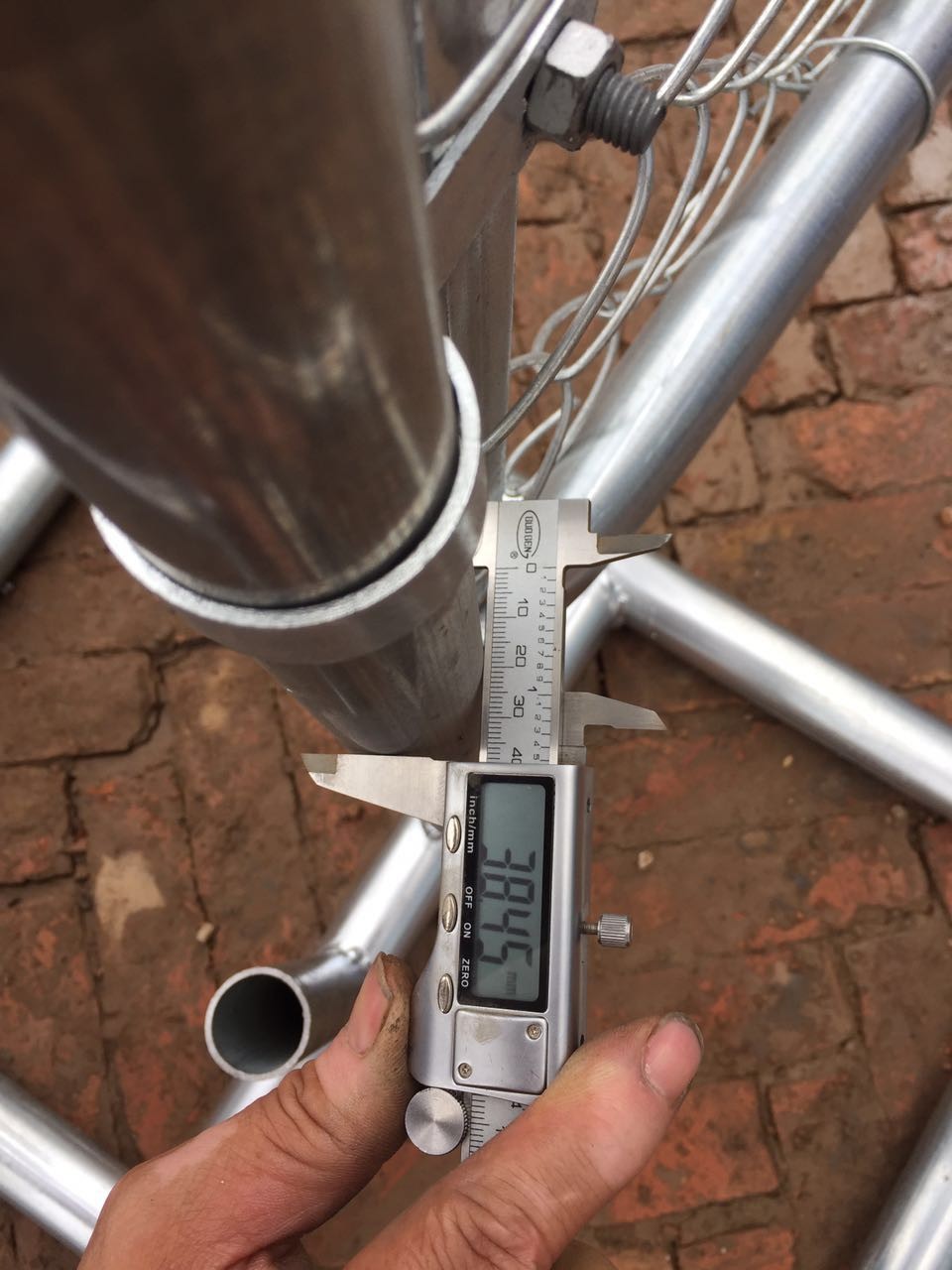

Temporary Fencing Panels detailed picture:
Temporary Fencing Panels production :
Application of Temporary Fencing Panels :
The temporary fence panel to secure construction sites and private
property.
Temporary fencing panel of residential housing sites.
Temporary fencing panel and crowd control barriers for major
public. events, sports, concerts, festivals, etc.
Temporary fence panel safety fencing for swimming pools.
Temporary Fencing Panels Packing:
1. rubber mat at the bottom of the pallet to avoid the pallet
destroyed the panel.
2. metal corners to keep the pallet more strong and wood plate on
the panel pallet.
3. the metal plate under the plastic bandage to a pressure for
fence panel.
4. according your request
