Decorative Cost-effective Rounded and Notched Steel Palisade
Fencing
Product Introduction
Palisade Fencing is constructed using the following main
components, these components are:
- Posts
- Cross Rails
- Pails
- Fish Plates
- M12 Security Fixings
- M8 Security Fixings
To construct one bay of Palisade Fencing you would require two
posts, two cross rails and 17 pails. Each bay as standard spans a
distance of 2750mm. Along with these items to construct one bay of
fencing you would also require 4 connection plates referred to as
fish plates these plates pass through the posts to bolt the cross
rails in place. lastly the fixings required to bolt all this
together are 4no M12 Security fixings for securing the fish plates
to the posts and then 34no M8 security fixings to secure the pails
to the cross rails, the image below details where these components
are used in the makeup of a bay of palisade fencing.
Specifications of Cost-effective Steel Palisade Fencing
Posts-100mm*55mm RSJ or102mm*44mm RSJ or127mm*76mm RSJ depending on
height of the fence.Posts installed at 2.75m centers.
Rails-Generally 50mm*50mm*6mm RSA-2no per bay.3no per bay in more
secure ares.
Pales-3mm thick D section or 2mm thick W section are the standard.
The tops are generally trple pointed or rounded and notched.17no
per 2.75m bay.
Fixings-M12 permacone nuts and bolts connect the rails to a fish
plate that slides through slots in the posts.M8 permacone nuts and
bolts or 6mm antivandal rivets connect the pales to the rails.
| Fence Height(mm) | W Panel Sections(mm) | Horizontal Rail Angle Section | Posts IPE Section | Posts Length(mm) |
| 1800 | 3mm | 50×50×6 | 98×55 | 2325 |
| 2100 | 3mm | 50×50×6 | 98×55 | 2725 |
| 2400 | 3mm | 50×50×6 | 98×55 | 3125 |
| 3000 | 3mm | 50×50×6 | 127×76 | 3925 |
| Fence Height(mm) | V Panel Sections(mm) | Horizontal Rail Angle Section | Posts IPE Section | Posts Length(mm) |
| 1800 | 2.5mm | 50×50×2.5-3 | 65×65 | 2125 |
| 2100 | 2.5mm | 50×50×2.5-3 | 65×65 | 2425 |
| 2400 | 2.5mm | 50×50×4 | 65×65 | 2800 |
| 3000 | 2.5mm | 50×50×4 | 65×65 | 3700 |
Features of Cost-effective Steel Palisade Fencing

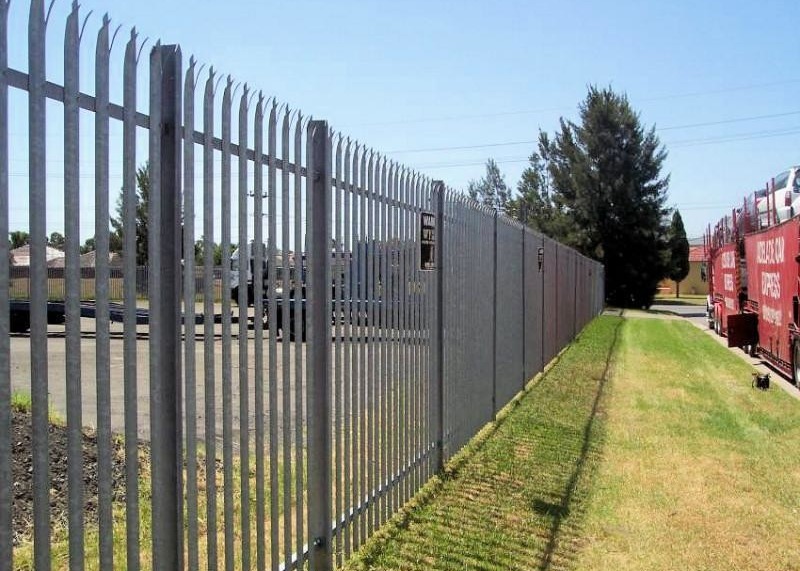

- Triple Point Top - Gives it an aggressive look and makes it
extremely difficult to climb.
- Rakeable Panels - Following the contour of the ground eliminating
gaps under fence with other systems.
- Hot Dip Galvanised - Each Individual component is hot dip
galvanized giving it ultra protection.
- Tamper Proof Fasteners - Making it extremely difficult to remove
components with conventional hand tools.
Applications of Cost-effective Steel Palisade Fencing
- Business factories, warehouses, and offices.
- Gas & Water Utilities.
- Waste Depots.
- Council swimming pools and equipment yards.
- Schools.
- Police Fire and Ambulance stations.
- Any perimeter that requires a secure boundary and/or fence.
FAQ
1.Can you supply sample for me to check?
Yes, we will provide sample for free.
2.How can I know how my order is being done?
We will inspect and test all items in order to avoid damage and
missing parts before shipping. The detailed inspection pictures of
the order will be sent to you for your confirmation before
delivery.
3. How do I order?
Call or email us with your requirements.
4 Do you offer bulk discounts?
We sure do. Our published prices are just a starting price for
single quantity purchases. Contact us with your requirements and we
will give you our best price.
Packaging Details
1.plastic film/Pallet or according to customer's request
2.plastic film shrink with pallet or wooden
3.also can be customized
