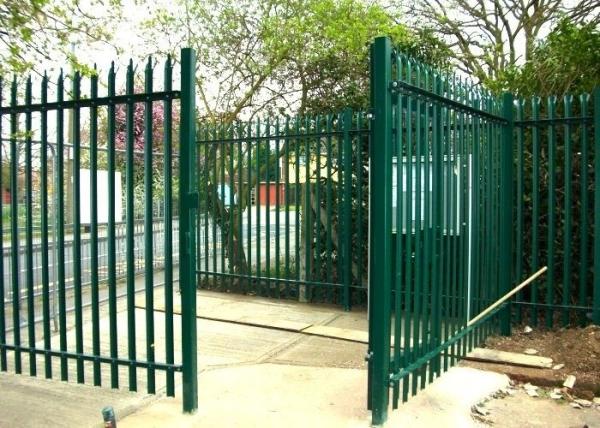

Powder Coated Various Colors High Strength Steel Palisade Fencing
Product Introduction
Steel Palisade Fencing, also known as European Style Fencing. In
some countries people may not familiar with this type of fencing
system, but many countries have already been using it to replace
the traditional brick walls and heavy wire mesh fence, making the
living environment beautiful, comfortable and fresh. "Palisade" is
also called "Security Defense assembled pales", it comes into
people's life because the pursuit of a better environment.
The most common specifications for Steel Palisade Fencing is 1.8M
high and 2.5M wide. Preservative treatment of this type of fencing
includes: electrostatic galvanized, hot dip galvanized, polyester
powder coated, PVC coated, etc. Powder coated and PVC coated Steel
Palisade Fencing due to its low price and durability are very
popular among customers. Durable, strong corrosion-resistant, long
service life are some of the characteristics of this type of
fencing system.
Specifications of High Strength Steel Palisade Fencing
Panels
2750mm wide panels (centre post-to -centre post) can be easily
raked to allow for most site conditions.
Fixings
All fixings are tamper-proof and anti-vandal. M8x25LG ‘T’ HD bolts
& cones.
Fixings per post:
2100mm (H) – 102x44
2400mm (H) – 102x44
3000mm (H) – 127x76
Hot-dip Galvanizing galvanized palisade fencing
BSENISO 1461 standard to achieve the highest quality and most
reliable galvanized finish.
| Height | Suggested Pale Thickness (mm) | Posts | Post Height | Rails |
| Meters | 'D' Section | 'W' Section |
| 1.8 | 3.00 | 2.00 to 3.00 | 100 x 50 | 2.325m | 45 x 45 x 6 |
| 2.0 | 3.00 | 2.00 to 3.00 | 100 x 50 | 2.725m | 45 x 45 x 6 |
| 2.1 | 3.00 | 2.00 to 3.00 | 100 x 50 | 2.725m | 45 x 45 x 6 |
| 2.4 | 3.00 or 3.50 | 2.00 to 3.00 | 100 x 50 | 3.125m | 50 x 50 x 6 |
| 3.0 | 3.00 or 3.50 | 2.00 to 3.50 | 100 x 50 | 3.925m | 50 x 50 x 6 |
| 3.6 | 3.00 or 3.50 | 3.00 to 3.50 | 100 x 50 | 4.725m | 50 x 50 x 6 |
Features of High Strength Steel Palisade Fencing
Strong, durable and fulfils many demanding roles. It is regularly
used around industrial units, civic amenities, schools and other
such applications where security is a major concern.
| Good Looking | The classic palisade has a neat appearance and can be color coated
to match a particular installation. |
Fast Installation | Because of its unique rail support, this security fence can be
installed in as little as half the time required of conventional
systems that are set between posts. |
| High Security | The palisade fence prohibits the use of hiding places by intruders. |
FAQ
1. Are the prices negotiable?
Yes, we will consider it accordingly.
2. Do you offer bulk discounts?
We sure do. Our published prices are just a starting price for
single quantity purchases. Contact us with your requirements and we
will give you our best price.
3. What is the difference between galvanized before weld and
galvanized after weld?
Galvanized before weld (GBW) or pre-galvanised means that the
materials used to construct the mesh are galvanized then welded
together, leaving the weld exposed. Galvanized after weld (GAW) or
hot dip galvanized means that the materials are welded together and
then the completed product is galvanized. GBW is more prone to
corrosion. Whether GBW is suitable for your situation depends on
the location you are planning to use the mesh and whether you plan
to finish it with paint or other coatings.
Our Service:
1.Loading the goods, we will track all the way, to ensure product
safety, quick to arrive at the designated ports
2.Arrival of the goods, we will provide installation instructions
and subsequent technical guidance
3.Company for products and accessories, for a long time to be able
to provide various products accessories at cost to the customer at
any time.
