1800mm High Durable Easily Assembled Industrial Palisade Fence
Product Introduction
Designed to provide security and protection in a wide range of
outdoor locations, Palisade Security Fencing can be erected on hard
ground like concrete by using steel Bolt Down Posts, or on softer
ground like grass, where Dig-In Posts are set within the ground.
Palisade Fencing is designed for permanent installation and can
also be installed on both level ground and sloping ground which has
a gradient no greater than 30 degrees; as it can be assembled to
run parallel to the ground without the need for stepping.
All Palisade Security Fencing and Palisade Gates are made from cold
rolled steel and are galvanised with a protective zinc coating to
help prevent rust over time. This galvanised finish meets the BS EN
ISO 1461:2009 standard.
Specifications of Industrial Palisade Fence
Heights
2100mm, 2400mm and 3000mm heights are available.
Paling Profiles
Available in 2 standard profiles - ‘W’ profile and ‘D’ profile.
Paling Tops
Available in 5 standard tops; Single point - Triple point - Square
- Round – Notched
Paling Thickness
Available in 3 standard gauges; 2.0MM - 2.5MM - 3.0MM
Horizontals
Available in 2 standard sizes according to height and site
requirements - 50x50x6mm or 65x50x6mm
Posts
100x55 IPE (European steel I-beams)
Available with welded fishplates or slotted for use with loose
fishplates. Can be concreted-in, base plated for bolting down or
cranked. Posts can be vertically extended to accommodate barbed or
razor wire.
Panels
2750mm wide panels (centre post-to -centre post) can be easily
raked to allow for most site conditions.
Fixings
All fixings are tamper-proof and anti-vandal. M8x25LG ‘T’ HD bolts
& cones.
Fixings per post:
2100mm (H) – 102x44
2400mm (H) – 102x44
3000mm (H) – 127x76
Hot-dip Galvanizing galvanized palisade fencing
BSENISO 1461 standard to achieve the highest quality and most
reliable galvanized finish.
| Fence height | 1.2m-3m |
| Fence width | 2.75m (17 pales) |
| W Pale width | 62mm, 68mm, 72mm |
| W Pale thickness | 2-4mm |
| Top point | Triple point, single point, etc. |
| Angel rail | 40x40x3mm |
| Post | IPE100x55mm
IPE120x74mm
SHS80x80x3.0mm
SHS100x100x4.0mm |
| Material | Cold and hot rolled steel belt |
| Surface treatment | Hot dipped galvanized |
| Accessories | Fish plate, HDG screw M8x25/M8x40/M12x40 and shear off nuts |
Advantages of Industrial Palisade Fence
Palisade Fencing is the perfect solution to your boundary security
fencing.As palisade fencing is supplied piece small it is easily
adapted to most site conditions.
Maintenance Free
Suitable for most site conditions
Cost Effective
Hot Dip Galvanized to British Standard EN ISO1461 or a color of
your choice.
Applications of Industrial Palisade Fence
As Palisade Fencing offers dependability and a high level of
security, you will often see it in a variety of private, public and
commercial places. Examples of where Palisade Fencing is used
include:
Businesses that have large amounts of stock
Commercial establishments
Water treatment plants and power stations
Bus and railway stations
General fencing for establishing boundaries
FAQ
1. What is your terms of delivery?
EXW, FOB, CFR, CIF, DDU.
2. What about delivery time after we placed the order?
Please inform us details about your order or project. We will have
proper arrangement then.
3. What about your sample delivery?
Truly, we offer samples. Delivery of sample may be via express, air
or ship, whichever agreed by both sides.
4. Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings. We can
build the molds and fixtures.
5. What about warranty?
Customer satisfaction is our key concern. All fence can withstand
15 years’ corrosion resistance. We promise to reimburse or replace
the products with defect immediately upon the confirmation of the
problem.

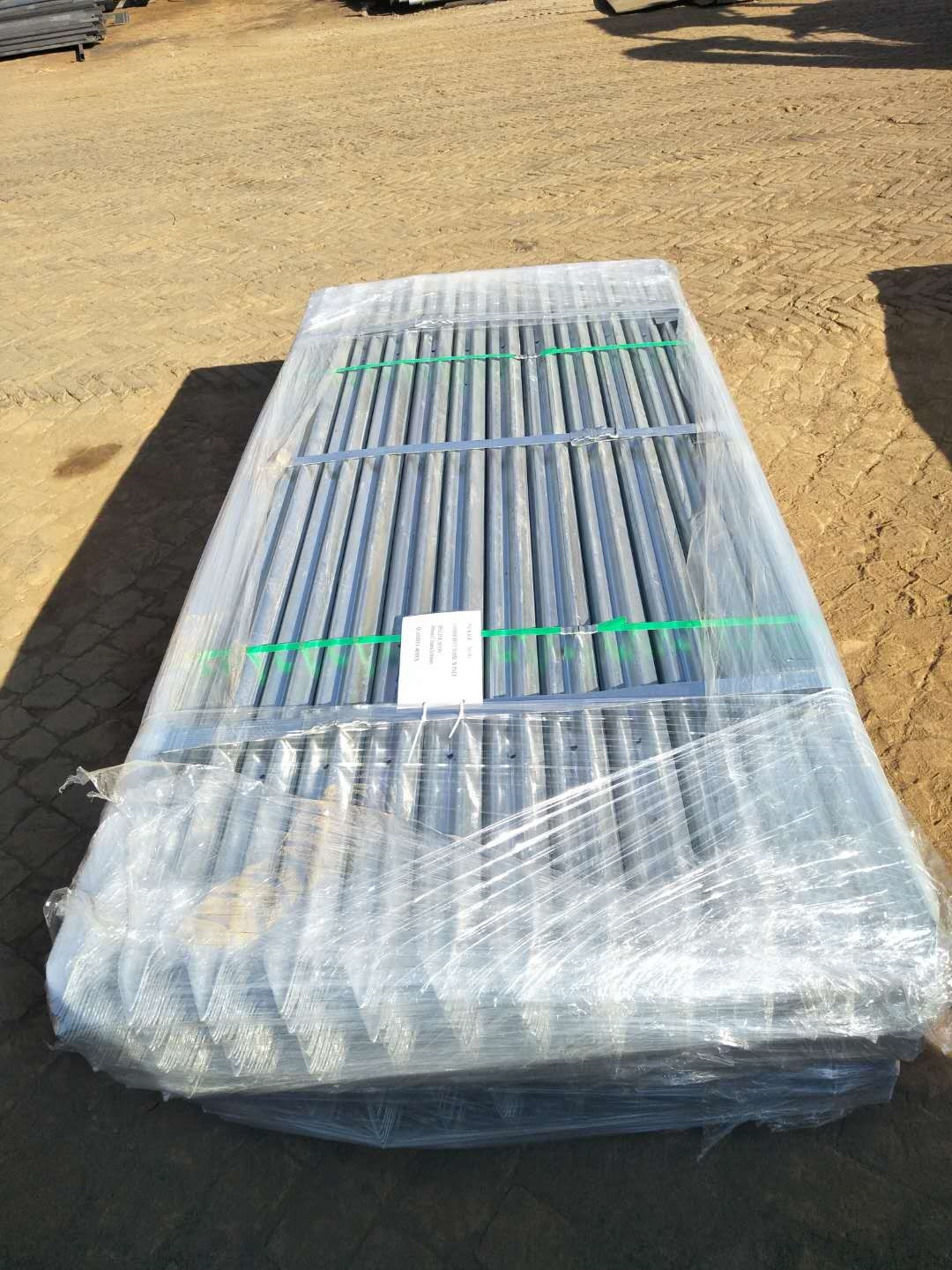

Packing and shipping
