Anti-rust Popular good rigidity galvanized steel palisade fence
panels
Product Introduction

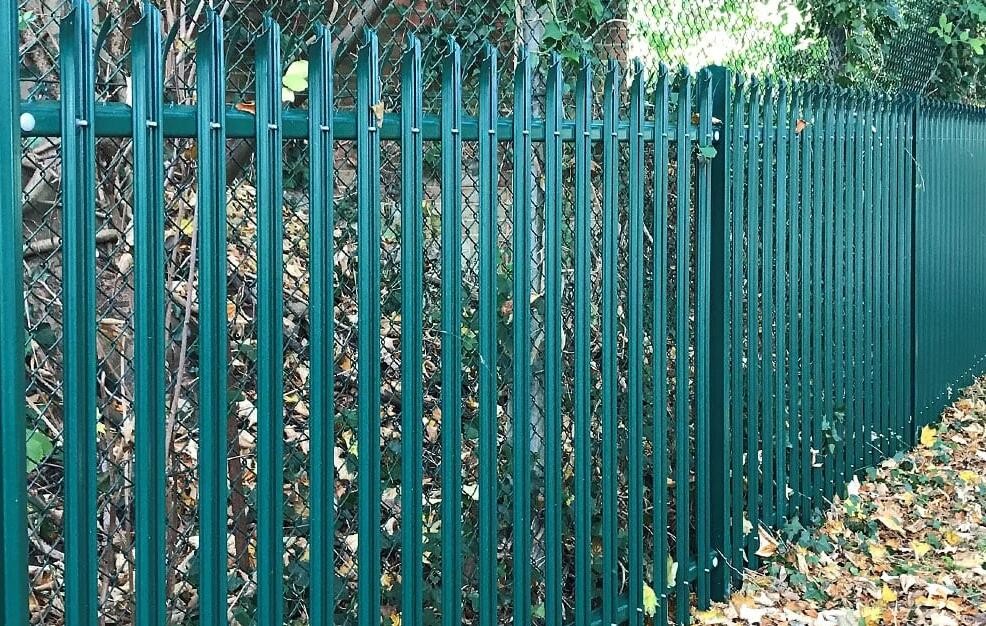

Steel Palisade Fencing, also known as European Style Fencing. In
some countries people may not familiar with this type of fencing
system, but many countries have already been using it to replace
the traditional brick walls and heavy wire mesh fence, making the
living environment beautiful, comfortable and fresh. "Palisade" is
also called "Security Defense assembled pales", it comes into
people's life because the pursuit of a better environment.
The most common specifications for Steel Palisade Fencing is 1.8M
high and 2.5M wide. Preservative treatment of this type of fencing
includes: electrostatic galvanized, hot dip galvanized, polyester
powder coated, PVC coated, etc. Powder coated and PVC coated Steel
Palisade Fencing due to its low price and durability are very
popular among customers. Durable, strong corrosion-resistant, long
service life are some of the characteristics of this type of
fencing system.
Specifications of galvanized steel palisade fence panels
Posts-100mm*55mm RSJ or102mm*44mm RSJ or127mm*76mm RSJ depending on
height of the fence.Posts installed at 2.75m centers.
Rails-Generally 50mm*50mm*6mm RSA-2no per bay.3no per bay in more
secure ares.
Pales-3mm thick D section or 2mm thick W section are the standard.
The tops are generally trple pointed or rounded and notched.17no
per 2.75m bay.
Fixings-M12 permacone nuts and bolts connect the rails to a fish
plate that slides through slots in the posts.M8 permacone nuts and
bolts or 6mm antivandal rivets connect the pales to the rails.
Finish-Galvanized to B,S EN ISO1461 as standard. There is also a
option for the fence to be Polyester Powder Coated to a color or
you choice.
Heights-Standard height are
900mm(3ft),1.2m(4ft)1.5m(5ft),1.8m(6ft),2m(6ft6),2.1m(7ft),2.4m(8ft),2.75m(9ft),3m(10ft),3.6m(12ft).
Gates-Single Leaf,Double Leaf and Sliding Gates are all available
made of measure.
| Height | Suggested Pale Thickness (mm) | Posts | Post Height | Rails |
| Meters | 'D' Section | 'W' Section |
| 1.8 | 3.00 | 2.00 to 3.00 | 100 x 50 | 2.325m | 45 x 45 x 6 |
| 2.0 | 3.00 | 2.00 to 3.00 | 100 x 50 | 2.725m | 45 x 45 x 6 |
| 2.1 | 3.00 | 2.00 to 3.00 | 100 x 50 | 2.725m | 45 x 45 x 6 |
| 2.4 | 3.00 or 3.50 | 2.00 to 3.00 | 100 x 50 | 3.125m | 50 x 50 x 6 |
| 3.0 | 3.00 or 3.50 | 2.00 to 3.50 | 100 x 50 | 3.925m | 50 x 50 x 6 |
| 3.6 | 3.00 or 3.50 | 3.00 to 3.50 | 100 x 50 | 4.725m | 50 x 50 x 6 |
Features of galvanized steel palisade fence panels
Difficult to Climb
No fence is impossible to climb but palisade fencing makes it
difficult for intruders due the sharp spikes on top. Having the
lengthier panels together with electric fencing provides even more
resistance.
Custom-made Gates
Swing, sliding and pedestrian gates can be custom-made to the
clients specifications.
Affordable Security
palisade fencing in bulk, allowing us to provide you with the most
competitive pricing available.
Everything under One Roof
stock a wide range of products including palisade fencing, screws,
bolts, gates, electric fencing, steel paint, welding equipment,
accessories and much more.
Applications of galvanized steel palisade fence panels
Palisade is available in varying specifications to suit a variety
of commercial and industrial applications including:
- Railway stabling yards
- Sports grounds.
- Business factories, warehouses, and offices.
- Gas & Water Utilities.
- Waste Depots.
- Council swimming pools and equipment yards.
- Schools.
- Police Fire and Ambulance stations.
- Any perimeter that requires a secure boundary and/or fence.
Company Information
FAQ
1. What about warranty?
Customer satisfaction is our key concern. All fence can withstand
15 years’ corrosion resistance. We promise to reimburse or replace
the products with defect immediately upon the confirmation of the
problem.
2. Will you keep customers updated for status of their order?
Certainly. We will have photos taken as confirmation when the
production finished and delivered by logistic department. These
pictures will be forwarded to clients in advance.
3. Do you provide ODM/OEM service?
Yes, of course. Our production line allow to accept OEM service.
Please discuss with us for your details.
