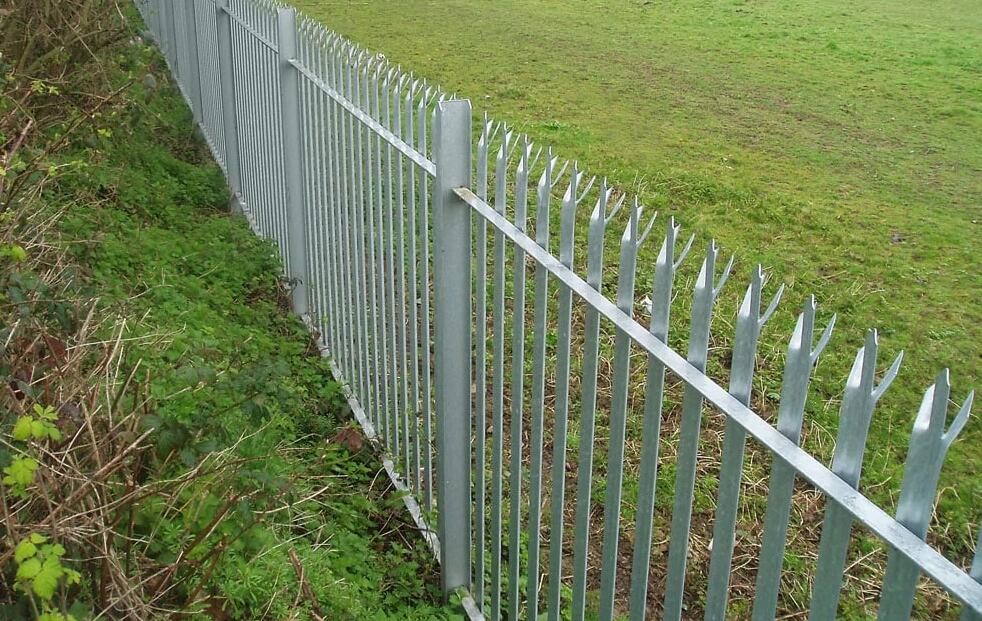

Unscalable Triple Pointed and Splayed palisade fencing and gates
Product Introduction
Palisade fencing and gates is easily assembled on site, it can
follow ground contours within limits, the bolted structure is not
as secure as the fully welded designs but in situations where
determined intrusion is not anticipated as a problem it forms a
strong deterrent.
Palisade fencing and gates is a welded system designed for security
applications where the risk is from vandalism or opportunistic
crime. It gives a delay factor greater than Chainlink and most
Welded Mesh Systems and is more secure than the Kit Form design.
Irish Fencing Services developed the welded panel in 1976 and it
rapidly became the market leader in security fencing. Ground
contours are dealt with by stepping panels or by specifically
sloped panels which are an extra cost. There are different
thicknesses of pale available. Available Galvanised or Galvanised
and colour Powder Coated finish to clients choice.
High Secure Palisade is designed for security applications where
the risk is from determined attack or where there is a serious risk
to the life of an intruder. This Specification has been developed
in conjunction with the requirements of The Electricity Supply
Board and meets Legal Requirements and Health & Safety Legislation.
Specifications of palisade fencing and gates
| Components | Domestic palisade fencing | Commercial palisade
fencing | Industries palisade
fencing |
| Pales | 42 × 2mm | 42 × 1.6mm | 50 × 2mm / 2.5mm or angle steel 40 × 40 ×2.3mm | 62 × 2.5mm / 3.0mm or angle steel 40 × 40 ×2.3mm |
| Horizontal rails | 40 × 40 × 2.5mm | 40 × 40 × 2mm | 40 × 40 × 2.5mm / 3.0mm | 50 × 50 × 3.0mm / 5.0mm |
| Square post | 76 × 76 × 1.6mm | 50 × 50 × 1.6mm or 76 × 76 × 1.6mm | 76 × 76 × 1.6mm | 76 × 76 × 1.6mm |
| Post clamps | 29 × 3mm | 29 × 3mm | 29 × 3mm | 45 × 3mm |
| Bolts and nuts | M6 ×No.34 for pale fixing | M6 ×No.34 for pale fixing | M8 ×No.38 | M8 ×No.34 for pale fixing |
| M8 × No.4 for rail fixing | M8 ×No.4 for rail fixing | M12 ×No.4 for rail fixing |
Features of palisade fencing and gates
- Triple Point Top - Gives it an aggressive look and makes it
extremely difficult to climb.
- Rakeable Panels - Following the contour of the ground eliminating
gaps under fence with other systems.
- Hot Dip Galvanised - Each Individual component is hot dip
galvanized giving it ultra protection.
- Tamper Proof Fasteners - Making it extremely difficult to remove
components with conventional hand tools.
Applications of palisade fencing and gates
Palisade Fening is available in varying specifications to suit a
variety of commercial and industrial applications including:
Industrial Areas
Airports
Railways
Schools
How to install palisade fencing effectively?
1.Before you start continuous installation, determine the exact
locations of your first post and dig a hole in the size about 350mm
(length) × 350mm (width) × 600mm (height) or other size according
to your post height.
2.Lay the first post in the hole; make sure the post is straight
and upright. Then pour the mixed concrete in and wait for concrete
drying.
3.Once the concrete is dry, start the continuous installation as
follow:
4.Dig the second hole according to the length of palisade rails you
intend to place between them.
5.Fasten the palisade rails from the first post to the second one.
Once the second post is fixed correctly and upright, meanwhile, the
horizontal palisade rails are in level, pour concrete in. In this
way, the post distance is always right, no need of post adjustments
any more.
6.Assemble palisade pales to the horizontal rails in conjunction
with bolts and nuts,Make sure the head of bolts are fixed in the
front of the panel and the pales are vertical against the palisade
rails.
7.Repeat this way, until your palisade fencing is finish.
