Metal Steel Construction Site Galvanized Temporary Chain Link
Movable Fence
Chain link movable fence introduction
Chain link mesh for fencing, woven from steel wire, is probably the
most widely used and versatile of all fencing fabrics, available in
a variety of wire gauges and mesh sizes to suit specific
applications. Available in three finishes, heavily galvanized,
P.V.C coated with a bright core or for double protection, PVC
coated with a galvanized wire core. Chain link fence is recommended
for use for House Garden fronts and divisions, Children's
Playgrounds, Playing Fields, and Recreational Grounds.
Chain link movable fence specification
Fence height | 4ft, 6ft, 8ft (1200mm,1800 mm, 2400 mm) |
Fence width/length | 8ft,10ft, 12ft, 14ft, etc (2400 mm, 3000 mm, 3700 mm, 4300 mm) |
Wire diameter | 2.7mm, 2.5mm, 3mm |
Chain link mesh size | 57x57mm (2-1/4"), 50x50mm, 60x60mm, etc. |
Frame tube O.D | 33.4mm (1-3/8"), 32mm, or 42mm (1-5/8") with 0.065" wall thickness |
Vertical/cross brace tube O.D | 25mm or 32mm with 1.6mm (0.065") wall thickness |
Fence base/stand | 610x590mm, 762x460mm, etc |
Accessories | clamps, base feet, tension wire and tension bar (optional) |
Material | hot dipped galvanized |
Surface treatment | All joints are welded and sprayed with a galvanized paint to cover
any exposed metal |
Our most popular size Height: 6’ and Length:12’ is for
construction, municipalities, schools, events and
residential projects.
Height: 8’ and Length: 12’ for large construction and commercial
projects that give you that added level
of security and safety.
Chain Link Fence panels comply with ASTM A392-06 standards, having
superior exposure and corrosion
resistance in an outdoor construction site.

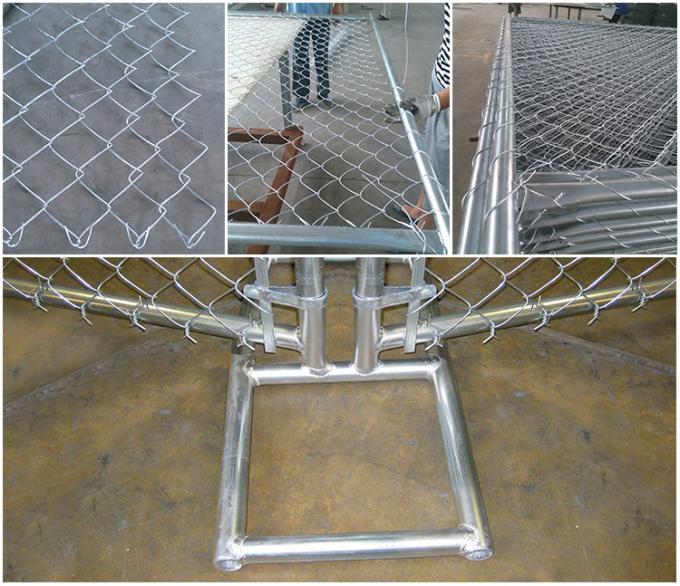

360° full welded tubular frame. All pipes are 360° full welding
circled to make sure a firm fence structure.
This can ensure that the temporary fencing is not damaged during
the frequent moving process, and will
not be corroded even in a hostile environment.
Handcraft techniques manufacture. Panels are filled with galvanized
chain link mesh and sometimes
wrapped around the frame tube with tension bars and tension bands
by hand in a rather tense way.
Another option sturdy attached way. Available flat bars that use
clamps to connect the two adjacent
panels.
Chain link movable fence usage
Construction sites and private property
Residential housing sites and schools
For major public events, sports,concerts, festivals,gatherings,
Sports playground or
swimming pools.
Traffic control and crowd control.
Chain link movable fence packing

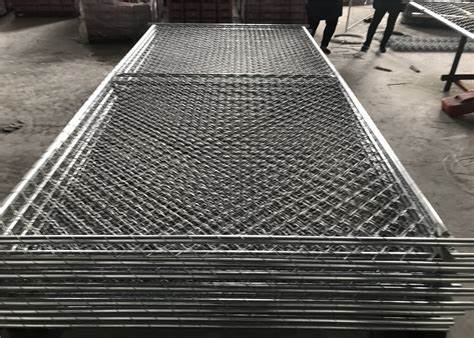

Panels: in order to load more quantity into the container, the
fence panel package will be in bulk. We will load panels piece by
piece.
Stands/feet: steel pallet and fastened with a nylon belt.
Clamps: in a carton. 50pcs/carton
Screen/shade cloth (if required): in bundle
