Construction Site Galvanized Portable Chain Link Fence Panels
Portable chain link fence panels introduction
Model NO.: temp chain link fence Standard: ASTM A392-06 Standards
Compliant
Base: 36"Base Stands for Added Stability Steel: Galvanized Steel
Construction
Finish: Corrosion-Resistant Zinc Coating Height: 4FT 6FT 8FT
Width: 9.5FT,10FT,12FT Trademark: Top Fence
Transport Package: Metal Pallet to Meet Nz and Aus Custom Required
Specification: 6FT X 12FT and so on
Origin: China HS Code: 7308900000
Portable chain link fence panels specification
| Item | Hot dip galvanized chain link temporary fence |
| Material | Galvanized steel wire and pipes |
| Surface | Hot dipped galvanized |
| Dimensions Width | 10ft 12ft 14ft |
| Dimensions Height | 4ft 6ft 8ft |
| Tube Diameter | 38mm 32mm |
| Tube Thickness | 1.5mm 2.0mm |
| Wire Diameter | 11ga.11.5ga, 12ga.12.5ga |
| Chain Link Mesh | 2''x2'' 2-1/2''x2-1/2'' |
| Application | agriculture field, sport field |
| Package quantity | 50pcs |
| Material Fence | Steel |
| All the products could be customized according to your
requirements. |
Portable chain link fence panels details

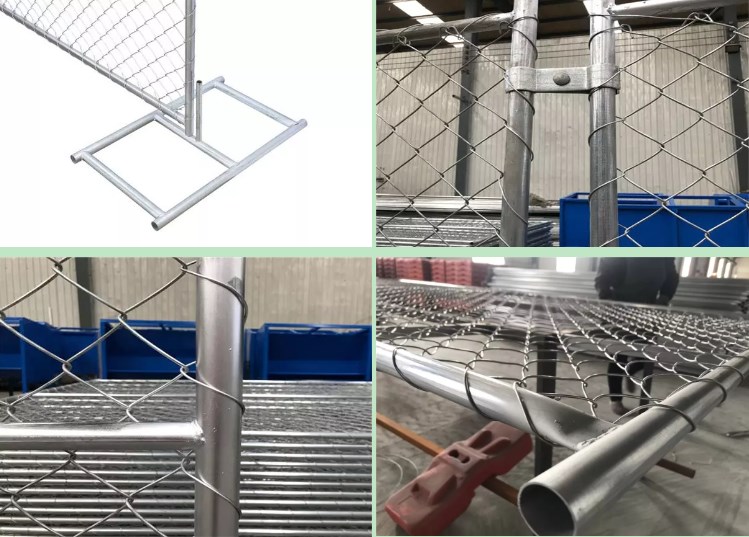

1. Chain link fence
Chain mesh roll size: Hole 2 inch x2 inch Wire: 12.5ga.
2. Pipe and clamp:
1 5/8” OR 1 3/8” GALVANIZED STEEL TUBING 16 ga
3. Temporary fencing feet:
Size:400mmx600mm Frame pipe:38ODx1.5mm Standpipe:32ODx1.2mm
TEMP STAND
FREE STANDING GALVANIZED STEEL TEMP STAND WITH 2 VERTICAL PEGS
WHICH SLIP EASILY INSIDE TEMP PANEL FENCE – NO TOOLS NECESSARY
4. Construction temporary fencing clamps:
GALVANIZED CONNECTORS
CONNECTING MULTIPLE TEMP PANELS TOGETHER ADDING PERIMETER SECURITY
FOR FAIRS, CONCERTS, PARKING LOTS,
BALLGAMES, AND OTHER EVENTS.
Portable chain link fence panels gate
Personal Gate: The gate of Temp Fence chain link fence is available
with 3' wide opening Pedestrian
gate with hinges and pad-lockable latch, giving a path to safely
and efficiently allow the crows.
Swing gates: The swing gate fully open to allow trucks to pass through. If the
opening is 12 feet or less (such as a pedestrian entrance), a
single swing gate is sufficient. Swing gates usually open inward
(toward the property), unless impossible to do otherwise. For wider
openings (vehicle entrances), double swing gates are recommended as
this configuration requires less room to operate than a single,
longer gate.
Portable chain link fence panels features
360° full welded tubular frame
Galvanized 60 or 28 microns to anti-corrosion
Installs on any surface including ground, asphalt, or concrete
ASTM A392-06 standard minimizes the amount of corrosion
The welding corner joints are galvanized sprayed painting to cover
any exposed metal.
Galvanized saddle clamps, nuts, and bolts are used to attach panels
together.
Portable chain link fence panels packing and loading
1. temporary fence panel:
on the metal pallet ( there is a carton board around the panel, to
reduce the crash)
2. Base:
on the metal pallet (plastic film on around, to keep the base
clean)
3. Tie wire & Clamps:
Tie wire is in the role, and then in water-proof paper outside
clamps are in small cartons.
