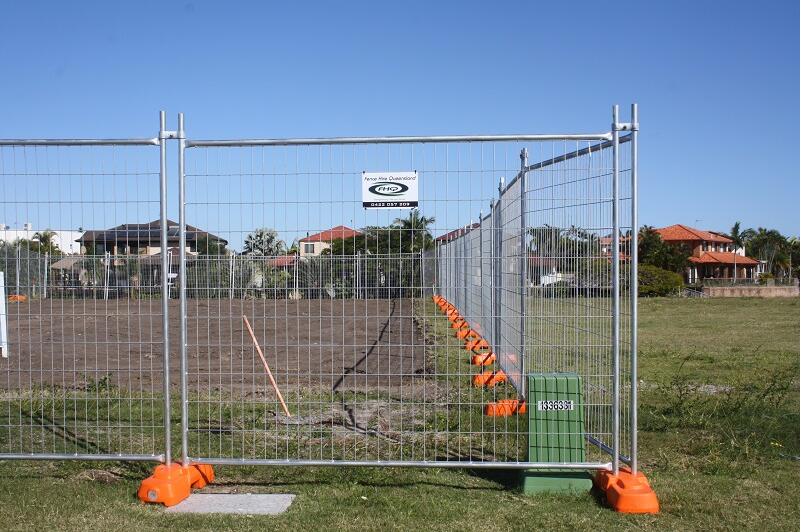

Welded Metal Construction Site Movable Temporary Security Fencing
Temporary security fencing introduction
Materials: High-quality low carbon steel wire, galvanized iron wire
Surface treatment:electric galvanized,hot-dipped galvanized,PVC
coated,powder painting etc.
Wire diameter: 3mm, 3.2mm, 3.5mm,4mm, 4.5mm...etc
Opening/hole size: 50*100mm, 60*150mm,75*75mm,75*100mm,50*200 etc
Height *Length:2.1×2.4m,1.8×2.4m,1.8×2.9m,2.1×2.6m, or as per your
request
Frame diameter:25mm, 32mm, 38mm,40mm, 42mm, 48mm O. D
Plastic feet:600*220*150mm;580*245mm*130mm
Clips: Galvanized iron bars 4mm thickness
Temporary security fencing specification
| Popular size |
| Wire diameter | 3.00-5.00mm |
| Mesh opening | 60*150mm,50*100mm,75*100mm75*75mm,50*50mm,100*300mm |
| H*W(mm) | 2100*2400,1800*2400,1800*2500,2100*2900,2100*3300 |
| Farme (mm) | 25OD,32OD,38OD,42OD,48OD |
| Special size is available |
Temporary security fencing features
Anti -climb mesh infill
360° hand weld between the vertical and horizontal pipe
Horizontal pipe ends crimped for increased strength
Easy installation and remove
Temporary security fencing clamps
Clamps are there to hold the temporary fence panels together and
also create rigidity between the panels.
A good quality temporary fencing clamp that will hold the pipe in
place, even under extreme pressure. These clamps are hot dipped
galvanized to comply with Australian Standards. Beware of cheap
imitations that will not hold the pipe securely.
Temporary security fencing feet
Blow Mould: 600X220X150mm
Can loading concrete or other. Our 3000 series fence base allows
you to configure a temporary perimeter into a Trip Free Zone.
Recommended for all high-traffic pedestrian walkways, work zones,
and events to be secured without the worry of creating a trip
hazard.
Temporary security fencing usage
