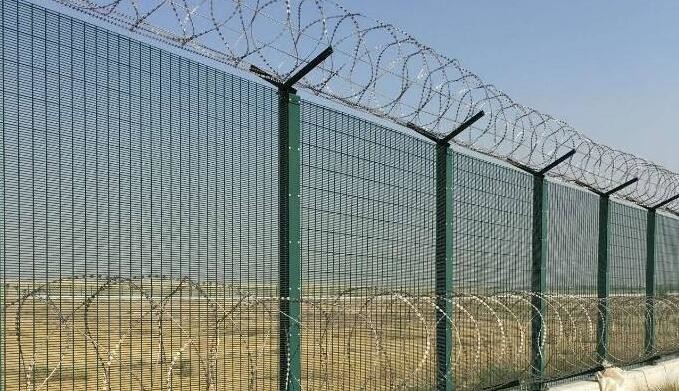

Powder Coated Anti Climb Fencing 358 Prison Mesh Security Fencing
Discription of 358 Prison Mesh Security Fencing
High-Security Wire Fence, also called 358 Security Fence and Prison
Mesh Anti Climb Fencing. It is a kind of high-security wire fence
made of solid steel wire consisting of 3"x0.5"(76.20mmx12.70mm)
comes with eight gauge wire equal to 4.00mm wire diameter a small
mesh aperture enables the fencing panels tough to penetrate and
attached with conventional manual tools. The 358 Security Fence
Panels have anti-climb and anti-cutting characteristics, known as
prison mesh and high-security wire fences. Our 358 fence available
Hot dipped galvanized,pre-galvanized, and galvanized then powder
coating with a reinforced fold or without.
Specification
| 358 Security Fencing Panel Height | 1.8m, 2.1m, 2.4m, 3m |
| Panel Width | 2.2m, 2.4m, 3m |
| Hole Size | 12.7x76.2mm, 12.5x75mm |
| Wire Thickness | 4.0mm |
| 358 Fence Post Length | 2700mm, 3000mm, 3600mm |
| Post Size | 60x60mm, 60x80mm, 80x80mm |
| Material | Steel Wire |
| Security Fencing Surface Treatment | PVC Coated or Powder coating |
Fence posts
Material: high-grade steel for maximum strength and rigidity.
Post section: 60 × 60 mm, 80 × 80 mm, 100 × 100 mm or 120 × 120 mm.
Post Plate thickness: 2.5/3.0/4.0/5.0 mm.
Finish: inside and outside galvanized (Min. 275 g/m2), subsequently
covered with a polymer powder (Min. 60 microns).
Colors: Green RAL 6005 or Black RAL 9005.
Post cap: metal caps or plastic caps.
Metal clips and clamps are hot-dips galvanized, then powder coating
in green or black color.
Features of 358 Prison Mesh Security Fencing
358 Anti climbing Wire Fence: more small openings, no toes or
fingers.
Anti cutting: the strong wire and welded joints make cutting the
bolt and wire cutting machines complicated.
High-strength welding at each intersection.
Durable Fence Panels: Wire of 358 Security Fencing Panelscovered
with Galfan and polymer powder coating to ensure long service life.
Packing and Shipping
Because we are 358 mesh fence factory have lots of experience in
production and packing these 358 fence panels in a good conditions
1) Fence panel: 1> in bulk 2> plastic film + metal/wooden
pallet
2) Fencepost: plastic bag + metal/wooden pallet (with rainhat
installed)
3) Fence accessories: plastic bag + carton box (clips & screws)
Benefits of 358 Prison Mesh Security Fencing
Secure and discreet
A superior system for providing security where a discreet visual
impact on the immediate environment is essential.
Vandal resistant
Anti-Cut: Robust wire and weld joints make cutting very difficult
using conventional bolt or wire cutters.
Anti-Climb: No toe or finger holds due to small mesh apertures.
Good viewing visibility
The panels have excellent visibility characteristics, due to the
flat two dimensional profile the fence appears almost invisible.
This is particularly important for unobstructed camera
surveillance, either from the front or at an angle.
Durability
The high quality coating technology guarantees an extended product
life span and low maintenance due to advanced anti-corrosion
properties.
Installation
The panels are produced in 3050mm widths so reducing the amount of
posts needed by 20%. Installation time is thus reduced.
