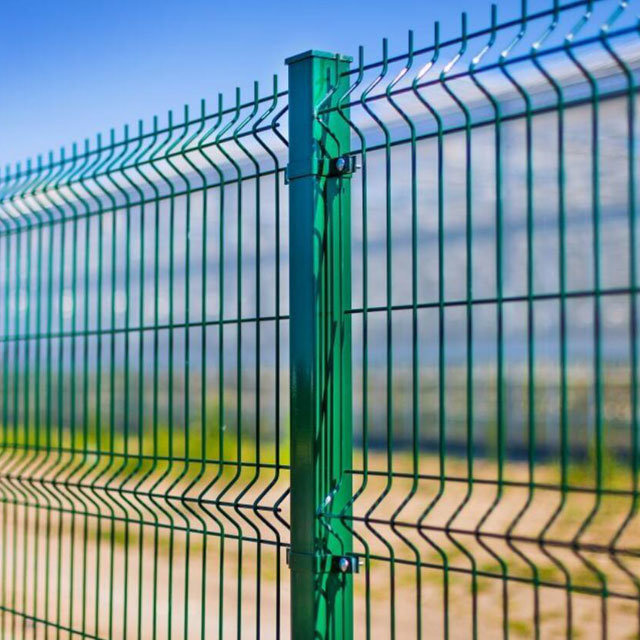

Galvanized Steel Metal PVC Coated 3D V Bending Welded Curved Garden
Wire Mesh Panel
Wire mesh panel description:
The wire mesh panel is one of the most important ways to keep your
home safe and secured from all forms of attacks by armed robbers
and so on. They are very affordable and inexpensive which is why we
see most homes using wire fencing for their walls and also very
durable and easy to make and fix on fences. There are different and
various types of wire fencing that are used for different purposes
and it is, therefore, most difficult to make up your mind on what
type of it you will want to use.
Wire mesh panel application:
expressway, railway, garden fences, decorative fences,
high-security fences, etc.
Property: as corrosion resistance, aging resistance, sunshine
resistance, weather resistance, etc.
Wire mesh panel advantages:
1) Fence posts made with concrete pouring, at low cost.
2) High strength, good overall stability.
3) Color plastic coating/spraying layer has a good anti-corrosion
and decorative effect.
4) The fence perimeter has a harmony and good outlook.
Wire mesh panel details:
1. Material: low carbon steel wire, galvanized iron wire, black
iron wire
2. Process: Welded---making folds/curves---- hot-dipped galvanized
---packing
3. Color: Silver White
4. Common Specification of Fence Panel:
| The Common Specification of Fence Panel |
| Wire diameter(mm) | 3mm—7mm,4mm,5mm is most popular |
| Mesh/Opening(mm) | 50x100/50x150/50x200 as your request |
| Length of panel(m) | 2m,2.5m or as your request |
| Width of panel(m) | 1m,1.2m,1.5m,1.7m,1.8m,2m,2.5m, as your request |
| Surface treatment | Hot-dipped Galvanized |
| Special specification can produced as your request |
5.Common Specification of Fence Post
Each kinds of post has various specification of thickness and
detail size.
| Specification of Square Post |
| size | 40*60mm,40*40mm,50*50mm,60*60mm, 80*80mm |
| thickness | 1.2mm,,1.5mm,2.0mm |
| height | 1.8m,2.1m,2.3m,2.5m or as your request |
| Surface Treatment | Hot-dipped Galvanized |
| clips | Plastic clip, metal clip |
| Specification of Round Post |
| diameter | 38mm,40mm,42mm,48mm |
| thickness | 1.2mm,,1.5mm,2.0mm |
| height | 1.8m,2.1m,2.3m,2.5m or as your request |
| Surface Treatment | Hot-dipped Galvanized |
| Specification of Peach Post |
| size | 50*70mm,70*100mm |
| thickness | 1.5mm,2.0mm |
| height | 1.8m,2.1m,2.3m,2.5m or as your request |
| Surface Treatment | Hot-dipped Galvanized |
How to Install Wire mesh panel?
1. Check for underground utilities. This is important before you
start digging holes for the fence posts because power, fiber-optic,
or other cables may be present around the area of your fence.
2. Mark your fence line. First, you must decide where you wish to
erect the terminal posts and gate, the bay area (the spaces between
the posts), and where you will install the plastic-coated fence
panels. To do this, run a roll of string along the imaginary
perimeter of your fence, taking into account all fence corners.
3. Review your marked fence line. Before proceeding, check the
fence line that you marked with string earlier to ensure that you
have included markings for the fence gate and all corners. Make the
necessary adjustments where required. When planning all bay areas,
you may decide whether to set up an infill for privacy, or a series
of rails.
4. Mark the corner posts' locations. When you have reviewed your
fence line and have made all necessary adjustments to your
satisfaction, tie a string between the 4x4 corner post locations.
Then finalize the measurements of your plastic-coated fence panels
accordingly.
5. Apply the measured panels. When you have measured the length of
your panels, use a stake in the ground to apply them to the line
posts' location. For example, for 6-foot panels set up 5-inch x
5-inch posts. Make sure the stakes are in physical contact with the
layout string marker in order to keep the posts aligned. When doing
so, keep in mind where the gates or other breaks in the fence are
supposed to be.
6. Dig final holes for fence posts. Before you do so, you must
decide what height you wish to have your fence and dig the holes to
a suitable depth accordingly. A diameter of 10 inches is advised
when digging your post holes. Now pour 6 inches of gravel into each
hole.
7. Fill all post holes with concrete. Follow instructions regarding
the drying process and use of the concrete, before you do this.
8. Insert posts into concrete. Use a mallet or hammer to tap the
posts down into position and ensure they are aligned. Before the
concrete dries, make any necessary adjustments.
9. Install plastic coated panels. Attach rail brackets to the fence
posts, then, slot the panels into these brackets. Use bolts and
screws to fasten the panels to the hangers.
10. Install the gate. When doing this, ensure that the gate and
fence are aligned at the bottom. Leave about 5/8 inch space between
the gate and the two posts on either side of it.
