Galvanized And Plastic Coated Welded Wire Mesh Fence 3D Fence Panel
3D fence panel description:
It is called welded wire fence panels or rolls and has lots of
types such as 3D security fence, double wire fence, roll-top fence,
and welded security fence. It is made of stainless steel wire,
galvanized wire or PVC coated wire. With high strength,
anti-abrasion and pressure, a welded wire fence is widely used in
different fields such as transportation, agriculture, sports, and
so on. Various welded wire fences are available and customized
according to customers' requirements.

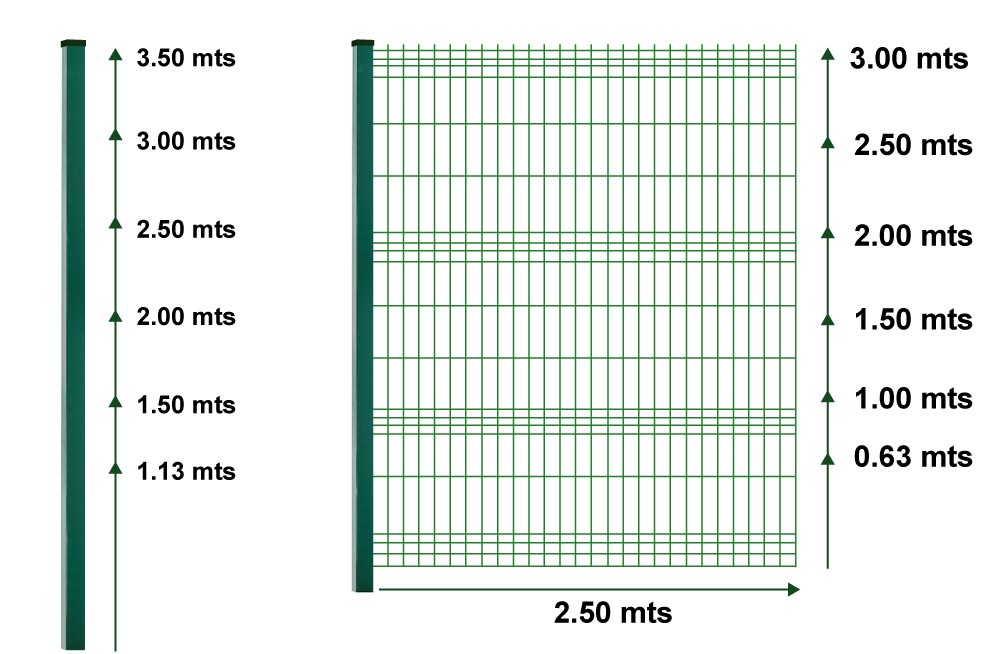

3D fence panel drawing:
Table 1: Panel Sizes of Welded Wire 3D Security Fence
| Mesh Size (mm) | Wire Diameter (mm) | Panel Height (mm) |
| 50 × 100 | 4.50 | 1050, 1200, 1500, 1800, 2100 |
| 50 × 150 | 4.88 | 1200, 1500, 1800, 2400 |
| 50 × 200 | 4.98 | 1050, 1200, 1500, 1800, 2100, 2400 |
| 4.80 | 1000, 1500, 2000, 2400 |
Table 2: Post Specifications of Welded 3D Security Fence
| Post style | Post size (mm) | Post thickness (mm) |
| Peach post | 50 × 70 | 1.2 |
| 70 × 100 |
| Square post | 40 × 40 | 1.2 |
| 1.5 |
| 60 × 60 | 2.0 |
| 2.5 |
| Rectangular post | 40 × 60 | 1.2 |
| 1.5 |
| 2.0 |
| Round post | 38 | 1.2 |
| 40 | 1.5 |
| 42 |
| 48 | 2.0 |
3D fence panel feature:
High strength and rigidity.
Anti-corrosion, abrasion, rust, and pressure.
Good flexibility.
Good adaptability to various terrains.
Lightweight.
Cost-effective.
Easy to clean and maintain.
Durable and can be used for a long time.
3D fence panel specification:
Material
carbon steel, stainless steel, aluminum.
Surface treatment
PVC coated, hot-dipped galvanized.
Wire diameter
0.5–10.5 mm.
Mesh sizes
6.25 × 6.25 mm, 12.5 × 12.5 mm, 50 × 50 mm, 50 × 100 mm or
customized.
Roll length
2 m, 5 m, 10 m or customized.
Height
0.5–2 m or customized.
3D fence panel application:
Railways
Airports
Playgrounds
Communities
Houses
Schools
Open-air parking lot
Zoos
Gardens
Farmlands
Ranches
Factories
Military uses
3D fence panel details:

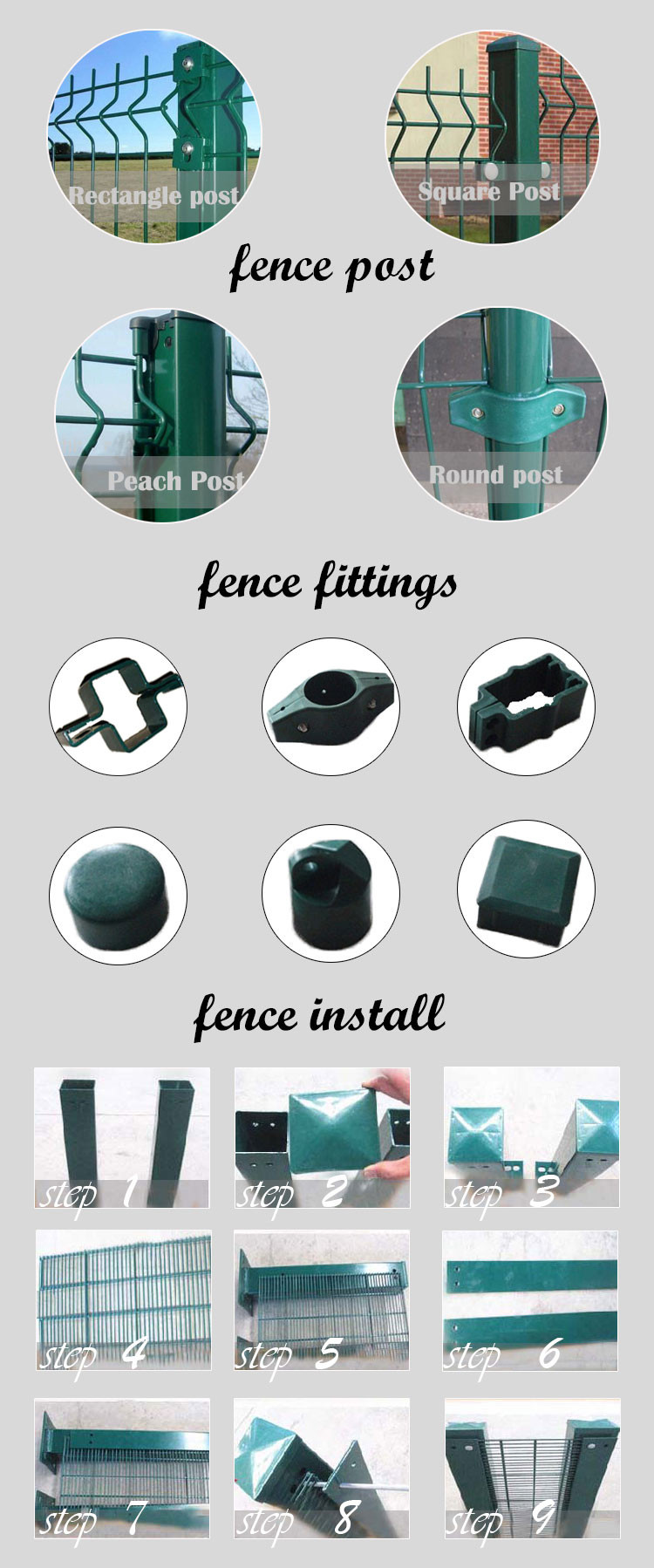

3D fence panel post types:
