2m High Welded Wire Mesh Fence Panels Design Decorative Garden
Fence

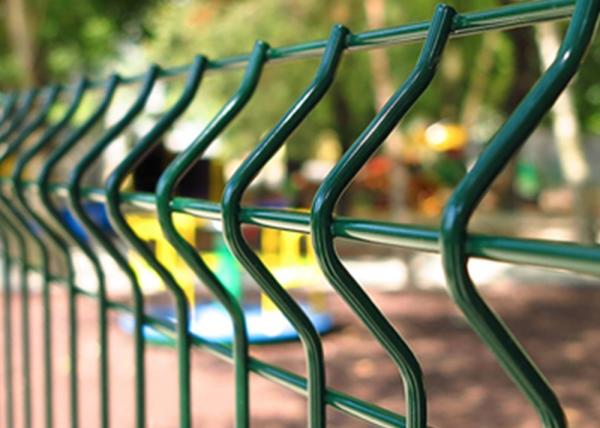

Garden fence description:
It is also called a curvy security fence, curved security fence is
manufactured from carbon steel, hot-dipped galvanized steel wire,
or PVC coated steel wire. There are different curve quantities on
the security fence panel according to the difference in height.
With stable durable and flexible structures, it is widely used in
factories, roads, gardens, residences, and other places. It is easy
to install a 3D security fence. Welded wire 3D security fence can
not only be installed on the earth, it can also be installed on the
concrete ground for different applications.
Garden fence specification:
Table 1: Panel Sizes of Welded Wire 3D Security Fence
| Mesh Size (mm) | Wire Diameter (mm) | Panel Height (mm) |
| 50 × 100 | 4.50 | 1050, 1200, 1500, 1800, 2100 |
| 50 × 150 | 4.88 | 1200, 1500, 1800, 2400 |
| 50 × 200 | 4.98 | 1050, 1200, 1500, 1800, 2100, 2400 |
| 4.80 | 1000, 1500, 2000, 2400 |
Table 2: Post Specifications of Welded 3D Security Fence
| Post style | Post size (mm) | Post thickness (mm) |
| Peach post | 50 × 70 | 1.2 |
| 70 × 100 |
| Square post | 40 × 40 | 1.2 |
| 1.5 |
| 60 × 60 | 2.0 |
| 2.5 |
| Rectangular post | 40 × 60 | 1.2 |
| 1.5 |
| 2.0 |
| Round post | 38 | 1.2 |
| 40 | 1.5 |
| 42 |
| 48 | 2.0 |
Garden fence feature:
High strength and rigidity.
Flexible and stable structure.
Corrosion and rust resistance.
High weather adaptability.
Beautiful appearance.
Easy to maintain, durable, and has a long service life.
Garden fence details:
Material
low carbon steel wire or stainless wire.
Surface treatment
hot dipped galvanized, PVC coated, powder coated.
Mesh size
50 × 100 mm, 50 × 150 mm, 50 × 200 mm.
Panel height
1–2.4 m.
Panel length
2–3 m.
Curve quantity
2, 3 or 4.
1000–1300 mm, 2 curves.
1300–1600 mm, 2 or 3 curves.
1600–1900 mm, 3 curves.
1900–2100 mm, 3 or 4 curves.
2100–2400 mm, 4 curves.
Post type
peach post, square post, rectangular post, and round post.

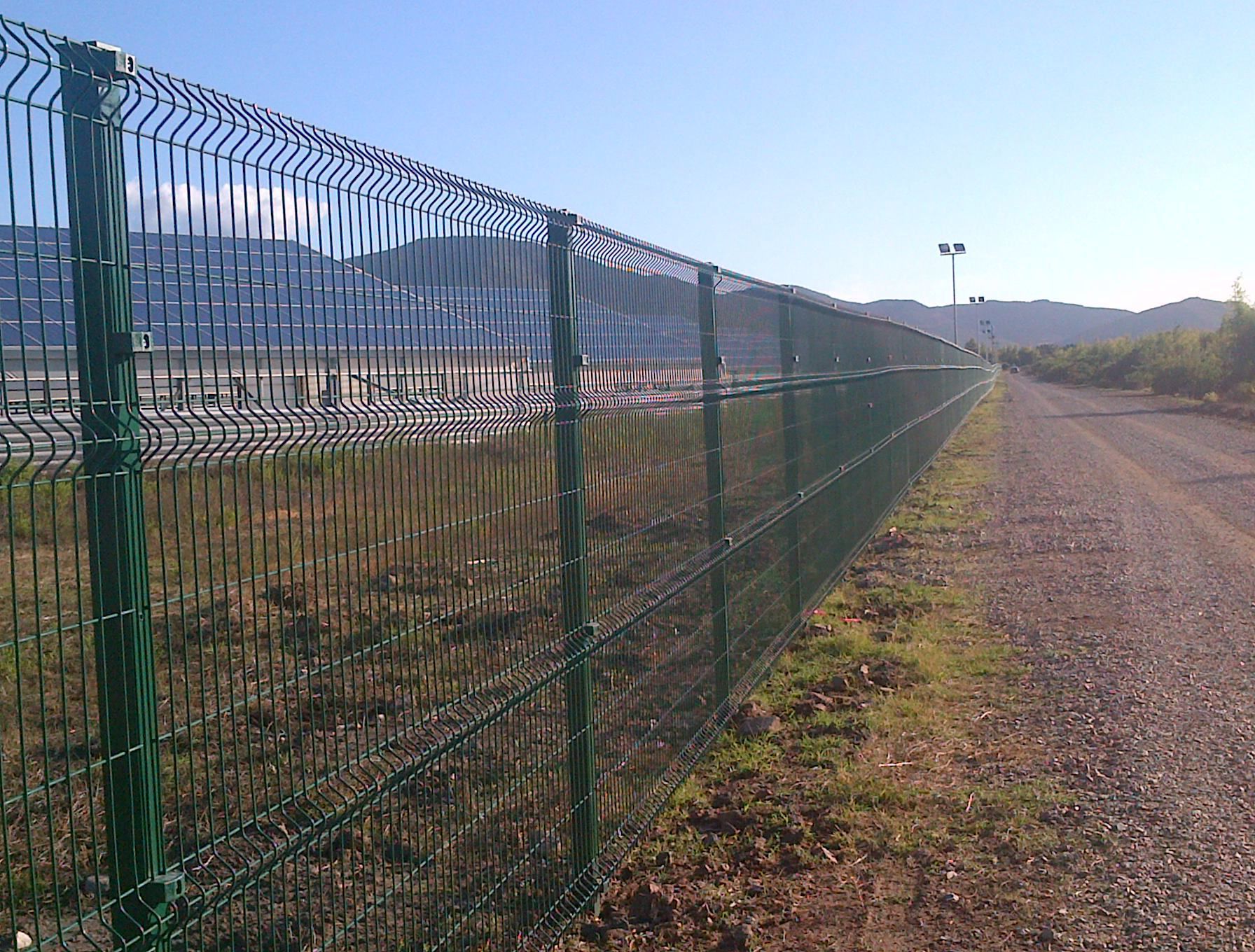

Garden fence application:
Railways
Airports
Playgrounds
Communities
Houses
Schools
Open-air parking lot
Zoos
Gardens
Farmlands
Ranches
Factories
Military uses

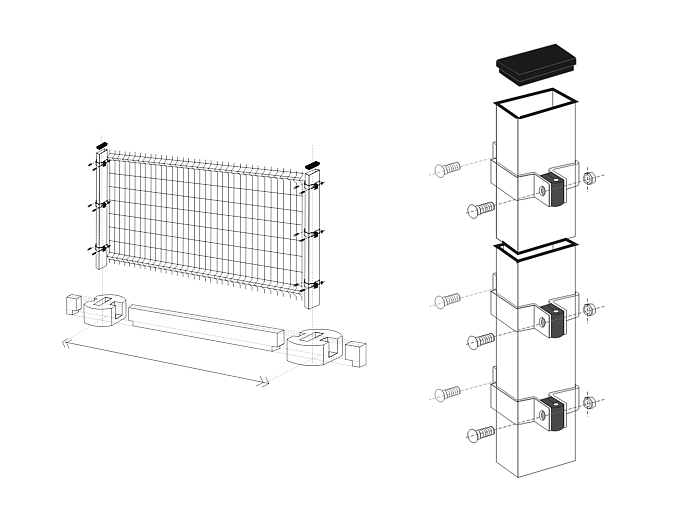

Garden fence drawing:
Garden fence packing:
