160g Alkali Resistant Concrete Fiberglass Wall Plaster Mesh Net
Roll Fiberglass Mesh Fabric

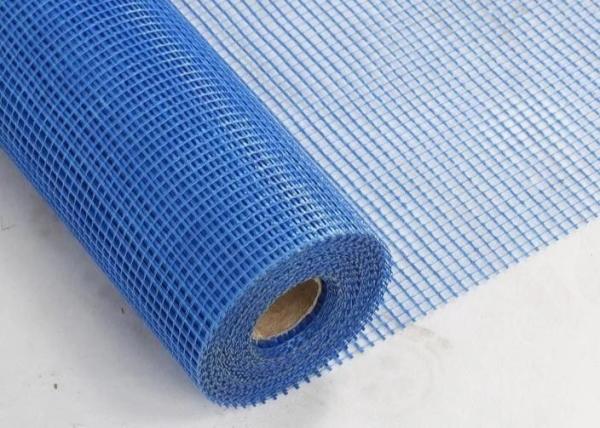

Fiberglass Mesh Fabric introduction
Fiberglass gridding cloth, Fiberglass heat Insulation mesh
Moq: 40000 square meters.
Colors: Red, black, yellow, green, white, blue, and so on,
Delivery time: 30days.
Logo and specification: Customized
Supply fiberglass mesh like strong or flexible mesh, soft or hard,
fireproof, different colors and sizes: From 30G/M2 to 500G/M2.
ALKALINE RESISTANT FIBERGLASS MESH
Alkaline-resistant fiberglass mesh is woven with fiberglass yarn as
its basis mesh and then coated by alkaline-resistant latex. It has
fine alkaline-resistant, high strength, etc. As an ideal
engineering material in construction, it is mainly used to
reinforce cement, stone, wall materials, roofing, gypsum, and so
on.
We can produce any size mesh according to the requirements of
customers like different mesh sizes and weights per square meter.
Fiberglass Mesh Fabric size
| No. | Model of Raw Yarn | Mesh(mm) | Mesh(mesh/inch) | Weight(g/m2) | Fracture Strength(N/50MM) |
| Warp | Woof | Warp | Woof | Wrap | Woof | | Warp | Woof |
| 1 | 50 | 204 | 5 | 5 | 5 | 5 | 70± 3 | 700 | 800 |
| 2 | 50 | 306 | 5 | 5 | 5 | 5 | 90± 3 | 700 | 900 |
| 3 | 100 | 330 | 5 | 5 | 5 | 5 | 125± 3 | 1100 | 1300 |
| 4 | 134 | 330 | 5 | 5 | 5 | 5 | 145± 5 | 1500 | 1500 |
| 5 | 134 | 408 | 5 | 5 | 5 | 5 | 160± 5 | 1500 | 1650 |
| 6 | 50 | 204 | 4 | 5 | 5 | 6 | 75± 3 | 750 | 750 |
| 7 | 50 | 255 | 4 | 5 | 5 | 6 | 90± 3 | 750 | 750 |
| 8 | 100 | 255 | 4 | 5 | 5 | 6 | 110± 3 | 1200 | 1100 |
| 9 | 100 | 306 | 4 | 5 | 5 | 6 | 125± 3 | 1200 | 1200 |
| 10 | 134 | 330 | 4 | 5 | 5 | 6 | 145± 5 | 1500 | 1500 |
| 11 | 134 | 380 | 4 | 5 | 5 | 6 | 165± 5 | 1500 | 1500 |
| 12 | 50 | 204 | 4 | 4 | 6 | 6 | 70± 3 | 750 | 750 |
| 13 | 50 | 306 | 4 | 4 | 6 | 6 | 90± 3 | 750 | 850 |
| 14 | 100 | 300 | 4 | 4 | 6 | 6 | 120± 3 | 1200 | 1200 |
| 15 | 134 | 330 | 4 | 4 | 6 | 6 | 150± 5 | 1500 | 1500 |
| 16 | 134 | 350 | 4 | 4 | 6 | 6 | 165± 5 | 1500 | 1500 |
| 19 | 204 | 610 | 12 | 12 | 2 | 2 | 110± 3 | 1000 | 1000 |
Fiberglass Mesh Fabric characteristics
- Coated with acrylic-acid copolymer liquid, these products have a
flat and clean surface, a rich sense of touch, and excellent
position-fixation
- These products are acid-resistant, alkali-resistant, and
anti-aging. Softness and color can be made according to customers'
requirements.
- The quality of products is stable through the seasons. The
products are shrink-wrapped, and their color and quality will not
change after the products are stored for 6 months.
Fiberglass Mesh is widely used in reinforcing light wallboard,
internal and external wall, building component, and plaster
products; besides, they can also be stuck on the back of mosaic,
marble, and other stone materials of superior quality. They are the
most ideal building materials for reinforcement and are widely used
during the innovation process of building materials for external
walls.
Fiberglass Mesh Fabric application
Plaster mesh is used on the outer and inner sides of the buildings
where sheathing is required.
At the same time, it is used as reinforcing carrier material in
plaster mesh floor and ceiling insulation, insulation created
against hot and cold climatic conditions.
Reinforcing walls
Natural marble
Plasterboard
Artificial stone materials and exterior insulation finishing
system.
Fiberglass Mesh Fabric loading
