Unobstructed Visibility Pvc Coated Green Security Wire Mesh Fencing
Brief Introduction
The new name in General Purpose V Mesh Fencing, Aobiao offers the
ideal fencing solution to your perimeter security requirements.
Named after the size of its hollow steel posts – which measure 60 x
60mm – Aobiao is a cost-effective variant of the standard Exempla
rigid mesh panel system.
Each profiled panel features 30mm projecting spikes, making them
extremely difficult to climb over, and ensures your fencing
provides an excellent deterrent against vandals and intruders.
This wire mesh fencing panel system uses strong wrap-around metal
clips (rather than a clamp bar) to hold the welded steel mesh
panels to the steel posts. These clips – with 90º angled returns
that prevent tampering – fit into threaded inserts on the posts and
are fixed in place using pin torx bolts for enhanced security.
The profiled mesh panels are first galvanized and then polyester
powder-coated and whether it is protecting public buildings, car
parks, business parks or retail premises, the wire mesh fencing
system is available in a full range of RAL colors, so you can match
it to your corporate colour scheme.
Specification
Material: Low carbon steel wire Q195 Q235
1. Processing mode: welded
2. Panel Classification:
I. Black wire welded mesh + pvc coated;
II. Galvanized welded mesh + pvc coated;
III. Hot dipped galvanized welded mesh + pvc coated.
(PVC coated colors: dark green, light green, blue, yellow, white,
black, orange and red, etc.)
| Panel height | Panel Length | Wire Diameter | Mesh Size | Folds No. |
| 1.03m |
2.0m
2.5m | Gal+PVC Painted
3.85mm/4.0mm
4.85mm/5.0mm
Gal+PVC Coated
3.0mm/4.0mm
4.0mm/5.0mm
| 50×200mm
55×200mm
50×150mm
55×100mm | 2 |
| 1.23m | 2 |
| 1.5m | 3 |
| 1.53m | 3 |
| 1.7m | 3 |
| 1.73m | 3 |
| 1.8m | 4 |
| 1.93m | 4 |
| 2.0m | 4 |
| 2.03m | 4 |
| 2.4m | 4 |
Specification of Square Post
| Size | 40×60mm,50×50mm,60×60mm,80×80mm |
| Thickness | 1.2mm,1.5mm,2.0mm |
| Height | 1.3m,1.5m,1.6m,1.8m,2.0m,2.5m,3.0m |
| Surface treatment | Elec. Gal.,Hot-dip Gal.,Powder spray,Deep Powder coated |
| Clip | Plastic, Metal |
Specification of Round Post
| Size | 38mm,40mm,42mm,60mm |
| Thickness | 1.2mm,1.5mm,2.0mm |
| Height | 1.5m,1.6m,1.8m,2.0m,2.5m |
| Surface treatment | Galvanized, Hot-dipped Galvanized,
PVC coated, Powder coated |
Specification of Peach post
| Size | 50×70mm,70×100mm |
| Thickness | 1.2mm |
| Height | 1.5m,1.8m,2.0m,2.5m |
| Surface treatment | Pre hot dipped galvanized+Powder Spray |
Application
Airports
Military Districts
Factories and Special zones
Business centers
High Speed Train and Highway Surroundings
Mining Fields and Oil Refineries
Consulates
Sports Complexes
Features

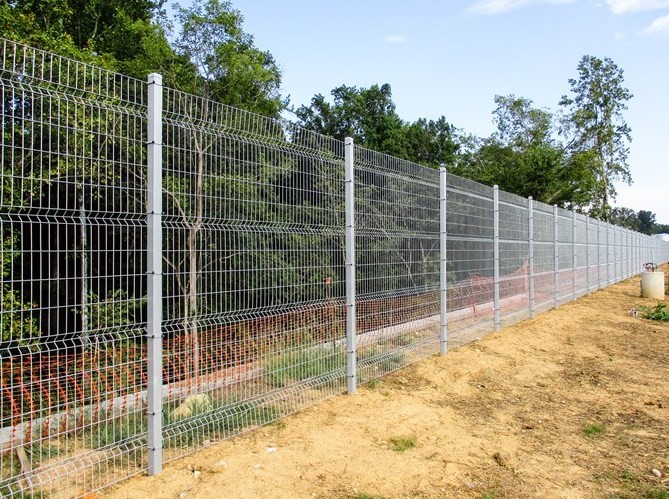

Wire mesh fencing is fencing system line of welded wire fence
perfect for projects that require full visibility but need a more
attractive profile than chain-link. This fence system provides
unobstructed visibility, aesthetics and security while delivering a
value added fencing solution.
