Good Corrosion Resistance Wire Mesh Fence Gate Double Gate For Yard
Description

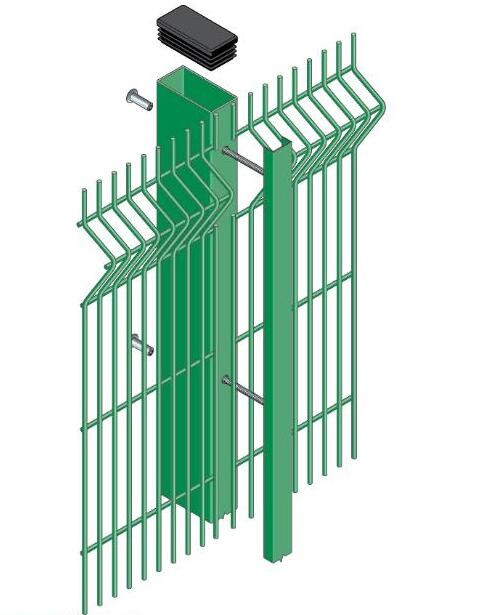

Aobiao wire mesh fencing is ideal for residential areas, commercial
properties, schools or car parks. The V shaped profile reinforcing
folds increase the panel’s rigidity and strength. Panels can be
stacked above one another to deliver a higher fence.
Aobiao wire mesh fencing correspond(s) to the generic
component/material "weld mesh" in the BRE Global Guide online
generic specification(s) "galvanized weld mesh fencing with metal
posts" which achieve(s) a summary rating of A within commercial,
domestic, residential, health, industrial, education.
Specification
PANELS
Panels 3000mm wide with 200 x 45mm mesh, 5mm wires with 3 - 4
reinforcing folds according to height, Galfan Zinc alloy treated as
standard. Vertical wires are at 50mm centres, therefore the panel
has 61 vertical wires.
GATES
We manufacture matching single and double leaf gates for this
product, with a range of opening actions and manual and automatic
operating options.
POST OPTIONS
· Overlength set in concrete as standard
· Baseplated to bolt down onto concrete
· Cranked to suit wall mounting
STANDARD FINISHES
· Hot dip galvanized to BS EN 1461 as standard
· Hot dip galvanized and powder coated to BS EN 13438 in one of our
standard colors at extra cost
· Powder coating to non standard BS or RAL to special order
· Marine coating for applications near sea water (optional extra)
STANDARD COLOURS
· Black RAL 9005
· Green RAL 6005
· Other colors are available on request
| V MESH FENCE DESCRIPTION |
Welded mesh panel
| Mesh size | 60mmx120mm, 70mmx150mm, 80mmx160mm |
| Wire diameter | 3.5mm-5.0mm |
| Panel size | 1.8mx3m, three or four bends |
Peach shape post | Post size | 70mmx100mm, 75mmx150mm |
| Wall thickness | 0.8mm-1.5mm |
| Height | 1.8m include flange, total 2.1m (30cm embedded) |
| Distance | 2m-3m |
| Fence Colors | Dark green, grass green, red, white, black, blue and yellow etc. |
| Customization accepted |
Application
1. Public building fence
2. Private place fence, Where visibility is desirable
3. Residential perimeter fence
4. In Parks, Zoos and nature reserves
Features
1. Good through visibility and also aesthetically pleasing.
2. Robust wire and welded joints make cutting very
difficult.Superior welding technique and process control create a
stronger fusion between the wires.
3. Good corrosion resistance, good security anti-aging.More small
openings, no toe or finger holds.
4. Easy and quick installation.
FAQ:
1. What are fittings and how are they used?
A: We have hundreds of fittings for our fence products. Different
type of fence comes with different accessories.
2. How do I take care of my new fence?
A: Just try to avoid man-made crash, acid, etc.
3. What type of fencing does SHUNXING FENCE offer?
A: Our mail products are welded mesh fence, double wire fence, 358
high security fence, chain link fence, temporary fence, portable
fence, airport fence, barbed wire, concertina razor wire, razor
wire fence and gabion box, etc.
4. What types of payment do you accept?
A: We accept T/T(30%/70%), L/C at sight, cash.
