Beautiful Looking Euro Fence Rolled Top Fence For Gated Community
Guard House
Brief Introduction

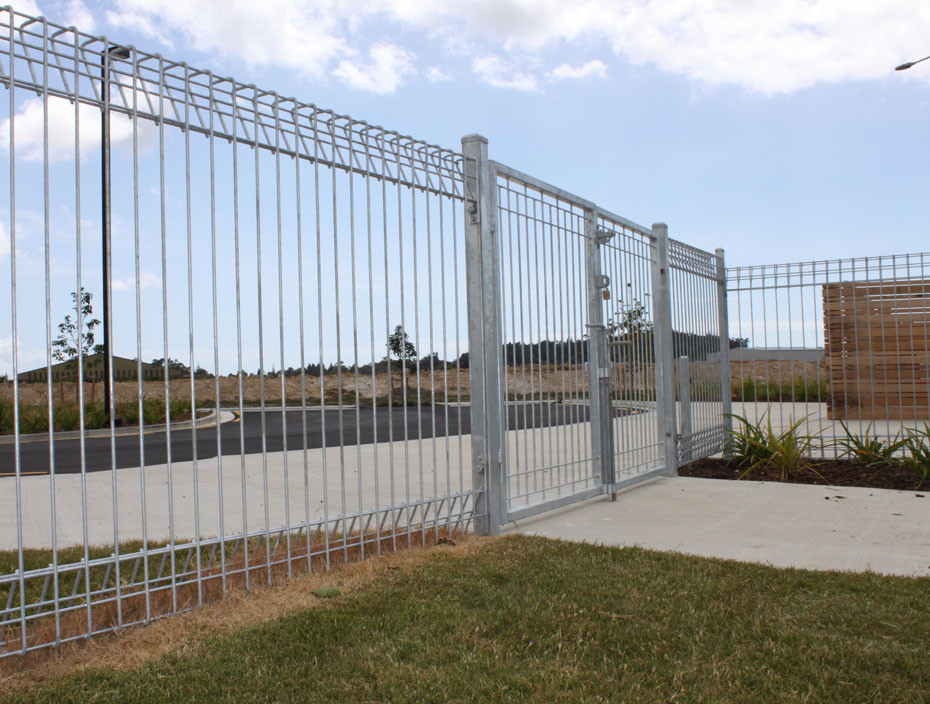

Roll top fence, also called BRC fence, incorporates user friendly
top and bottom "trigonal" edges to give enhanced safety and
rigidity to the fencing. With no sharp or raw edges, Roll Top
panels are suitable where safety is a consideration. The structure
of this fence is different with the other series, Both the top and
the bottom sides have a triangle fold, in this way the barbed edge
will be hidden in side, All the surface faced to people around is
smooth, so it will avoid the accidental injury.The surface treated
by hot dipped galvanized or polyester powder coated.
Installation is simple and easy. They come complete with panels,
posts, post caps, U-clips, bolts and nuts in either hot dip
galvanized and or powder coated in colors. Steel posts are
pre-drilled and ready for assembly on site. For fence height more
than 2.4 m, we suggest “Multi-lift erection system” where one or
more panels are placed on top of the bottom panel.
With these features and benefits, Roll top Weld fence is preferred
for residential, commercial and governmental projects. Whether you
are a home owner, business owner, architect, contractor or
developer, Roll top weld fence offer substance, style and peace of
mind.
Specification
1. Wire diameter: 5mm,4mm,3mm
2. Mesh size: 50x200mm
3. Height x Length: 2.03x2.5m,1.53x2.5m
4. Square post: 60x60x1.5x2400mm
Wire mesh Fence panel
| Panel Height | 600mm-3000mm |
| Panel Width | 2000mm-3000mm |
| Wire Diameter | 3mm-6mm |
| Hole opening | 50x50mm,50x100mm,50x150mm,50x200 mm, 65x200mm |
| Material | low carbon steel wire, galvanized wire |
| Surface treatment | electric galvanized, hot dipped galvanized, powder coated and PVC
coated |
| Curve | type and quantity on customer request |
Wire mesh Fence post
| Square Post | 40x60x2mm or 40x60x1.5 mm,60x60x2mm,60x80x2mm,80x80x2mm |
| Peace Post | 100x70mmx1.2mm |
| Post height | according to fence panel height, (Normal 0.65-4m) |
| Finish | hot dipped galvanizing,powder coated |
| Accessories | post cap, clamps, bolts and nuts |
| Wire Mesh Fence Color | Any RAL Series color(Normal RAL 6005 Dark green, RAL 9005 Black) |
Application
Road and transit ( highway, railway, road, city transit )
Science & Industry Zone ( factory, industry zone, sightseeing zone,
new pattern farm )
Private grounds ( courtyard, villa )
Public grounds ( park, zoo, train or bus station, lawn )
Commercial grounds ( corporation, hotel, supermarket )
Features
1. Suitable where safety is a consideration
2. Aesthetic appearance
3. High rigidity
4. Excellent through vision
5. Wide range of colour options
6. Available as a complete system
Our Service:
1. Best after-sale service, customer can follow their order
situation at any time, no matter production line, warehouse or
shipment.
2. More than 6 years experience in export to handle your order more
smoothly.
3. Less than one container loading is accepted.
4. Installation, maintenance and repair instructions with full
information.
5. Loading the goods, we will track all the way, to ensure product
safety, quick to arrive at the designated ports.
6. Arrival of the goods, we will provide installation instructions
and subsequent technical guidance.
