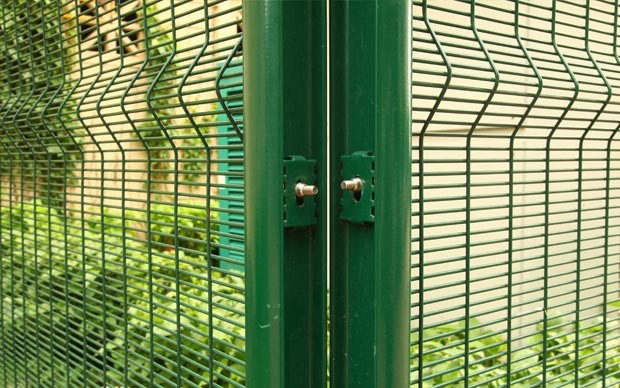

Military site anti-intrusion 358 pvc coated security fence top with
razor barbed wire
Brief Introduction
358 fencing system,the ultimate in high security perimeter
protection, this system is extensively used when defend able space
is paramount, used throughout the world in varying applications.
358 fencing is highly regarded as the most difficult mesh security
fence to penetrate, providing an excellent defence against climbing
and cut-through.
358 fencing is the popular choice when securing the perimeter of
your business. 358 fencing's unique design ensures maximum security
to your building, because of the anti-cut, anti-climb and enhanced
security barrier that ensures maximum visibility for security
cameras.
It is also very difficult and time consuming to attempt to pass
items from the protected area 358 fencing.
Specification
Panel:
Wire dia: 3mm-5mm.
Mesh size: 12.7*76.2mm
Package: wrapped with shrink film or packed in pallet.
Panel width: 2400 mm.
Panel height: 2000–3600 mm.
Post:
Material: High grade steel.
Post type: RHS post or H post.
Post section: 60 × 60, 80 × 80, 100 × 100, or 120 × 120 mm.
Post Plate thickness: 2.5, 3.0, 4.0, 5.0 mm.
Post cap: metal caps or plastic cap.
| Master View 358 | 2.1m | 2.4m | 3.0m |
| Panel Height | 2134mm | 2438mm | 2997mm |
| Panel Width | 2515mm | 2515mm | 2515mm |
| Mesh Size | 12.7x76.2mm | 12.7x76.2mm | 12.7x76.2mm |
| Horizontal Wire | 4mm | 4mm | 4mm |
| Vertical Wire | 4mm | 4mm | 4mm |
| Panel Weight | 50kg | 57kg | 70kg |
| Posts | 60x90x4mm | 60x90x4mm | 80x80x4mm |
| Post Length | 2.8m | 3.1m | 4.0m |
| Clamp Bar | 40x6m slotted | 40x6m slotted | 40x6m slotted |
| Fixings | 8 security nuts | | |
| No. Of fixings | 8 | 9 | 11 |
| Other specifications could be customized by your requirements |
Application
358 wire mesh fence gates
Shipping Port Security fencing
Electrical sub-station fencing
Water Treatment works
Gas pipelines Security Fence
High security window grilles
Balustrades Security Fence
Features
High density yet good viewing visibility.
Anti-climbing, anti-cutting, anti-corrosion.
Easy to install and long service life.
Anti-Climb.
Protects against cut-through.
Increased delay factor.
