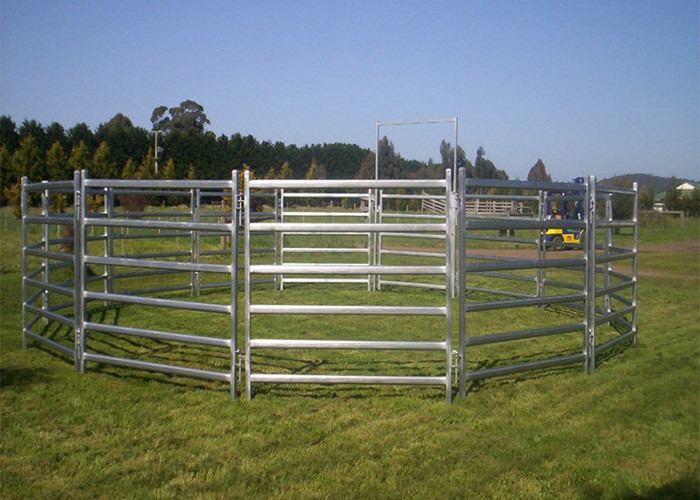

1.8m×2.1m Strong Cost-effective cattle panels Used for round pens
Brief Introduction
cattle panels is also known cattle yard panel, livestock panel,
cattle corral panels, cattle fence panels and so on.
Cattle panel can be used as a portable or permanent fencing
solution for livestock. The Panels are perfect for uneven or steep
terrain and the measure 2.1m x 1.8m high and are made out of heavy
duty hot dipped galvanized pipe to the Australia standard.
No matter what style or size of cattle stockyard you require, you
can create it with our premium line of panels,gates,cattle
crushes,and additional cattle handing equipment.
A well designed cattle stockyard will create livestock flow,
ensuring that cattle move smoothly from one section of the handling
yard into the next, and that they can be sorted with ease. The
requirements of every property and operation vary greatly, and you
need to consider many factors when designing your ideal stockyard.
Choose from a variet of products,panel and gate styles,and
installation methods to create your ideal cattle yard.
Specification of 1.8m×2.1m Strong cattle panels
Each panel includes BosAg Branded Components:
2 x Foot Plates
2 x 180mm Drop Pins (tapered end)
2 x 40mm x 40mm Square Post Caps
2 x 40mm x 5mm FMS L Cleats used with slotted 20mm x 30mm holes
2 x 40mm x 5mm FMS C Cleats used with slotted 20mm x 30mm holes
| cattle Fence Panel |
| Material | hot dipped galvanized square pipe, oval pipe and round pipe and
RHS. |
| Dimension | height:1.8m;length:2.1m,3m |
| Vertical pipe | RHS:50 X 50 X 1.6 mm or round pipe:50 x 1.6 mm |
| Horizontal pipe | a.round pipe: 32 x 1.6 mm,42 x 1.6 mm b.square pipe: 40 X 40 X 1.6 mm,50 x 50 x 1.6 mm c.oval pipe: 30 x 60 x 1.6 mm,40 x 80 x 1.6 mm |
| Bars/Rails | 6 bars/rails |
| Accessories | with hugs,caps and pins |
| Production Process | put the pipe on the welded shaping machine , the pipe are
galvanized welded,the pipe according to the drawing,the last make
the spot smoothing |
Advantage | fence panel is light,easy to transport and install,ventilate
diaphanous; high strength and tensil strength good pressure
resistance,corrosion resistance and weather
resistance;anti-oxidzing property |
Advantages of 1.8m×2.1m Strong cattle panels
•Our livestock cattle panel meets Australia standard, and is very
popular in the Australian market.
•The panel are inter-locking, very sturdy and easy install, no need
to dig holes or lay foundations.
•The metal rails are hot dip galvanized before welding, thus has
strong capability of anti corrosive.
•We are a direct china factory and manufacturer, and can provide
you with high quality and best prices.
•We have more than 7 years exporting experience,and our products
are in hot sale in Australian markets,European countries, America
markets etc.
Our service
(1) Factory directly sale.
(2) It can customized according to the requirements or drawings.
(3)With the fastest speed of delivery.
(4)Answer questions in a timely
(5)Enquiry will be replied in 2 hours.
(6)If you have any question,please tell me freely.
FAQ
Q1.manufacturer or trading company
A: We are a manufacturer having more than 6 years of production
experiences.
Q2.Minimum of order
A: One set can be met ,but the price will be higher.
Q3.Can you arrange the shipment in busy season
A: We ship many years,we having good relationship with ship
lines.Our products can be shipped in priority.
Packing and Shipping
