Australia Light Duty Outdoor Construction 3.0mm Temporary Fence Panel

    Buy cheap Australia Light Duty Outdoor Construction 3.0mm Temporary Fence Panel from wholesalers

    Buy cheap Australia Light Duty Outdoor Construction 3.0mm Temporary Fence Panel from wholesalers
    • Buy cheap Australia Light Duty Outdoor Construction 3.0mm Temporary Fence Panel from wholesalers
    • Buy cheap Australia Light Duty Outdoor Construction 3.0mm Temporary Fence Panel from wholesalers

    Australia Light Duty Outdoor Construction 3.0mm Temporary Fence Panel

    Ask Lasest Price
    Brand Name : AOBIAO
    Model Number : FSL-TSF-005
    Certification : ISO CE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 2000 sets per week
    Delivery Time : about 25-30 days after receiving the deposit.
    • Product Details
    • Company Profile

    Australia Light Duty Outdoor Construction 3.0mm Temporary Fence Panel

    Australia Market Light Duty Outdoor Temporary Construction Fence Panel


    Construction fence panel introduction:


    Fence panel height x width
    2.1x2.4m, 1.8x2.4m, 2.1x2.9m, 2.1x3.3m, 1.8x2.2m, etc
    Wire diameter
    2.5mm, 3mm, 4mm, 5mm
    Mesh
    mostly welded wire mesh, chain link mesh is also available
    Mesh size
    60x150mm, 50x75mm, 50x100mm, 50x50mm, 60x60mm, etc.
    Frame tube O.D
    32mm, 42mm, 48mm, 60mm, etc.
    Panel material and surface
    hot dipped galvanized carbon steel
    Zinc mass
    42 microns
    Fence base/feet
    plastic feet filled with concrete (or water)
    Accessory
    Clamp, 75/80/100mm center space
    Optional parts
    extra brace, PE board, shade cloth, fence gate, etc.

    Australia Light Duty Outdoor Construction 3.0mm Temporary Fence Panel

    Construction fence panel specification:


    Specifications
    Normal Size
    Panel Height(mm)
    1800,2000,2100
    Panel Length(mm)
    2000,2100,2300,2400,2500
    Frame Post(mm)
    Φ32*1.5,38*1.5,42*2.0,48*2.0
    Infill Wire Diameter(mm)
    2.5-6.0 Horizontal,2.5-6.0 Vertical
    Infill Welded Mesh Size(mm)
    50*50,50*100,50*200,75*150,100*300
    Surface Treatment
    Pre-galvanized wire and tube welded,high zinc coating wire and tube welded

    Australia Light Duty Outdoor Construction 3.0mm Temporary Fence Panel

    Construction fence panel process:


    Carbon steel wire and pipe welded---polishing the welds---sanding(electric galvanized)—powder coating(hang the mesh--oil removal (skim)---washing---phosphating—washing again---drying---powder coating --sulfuration /vulcanization--stacking--packaging)

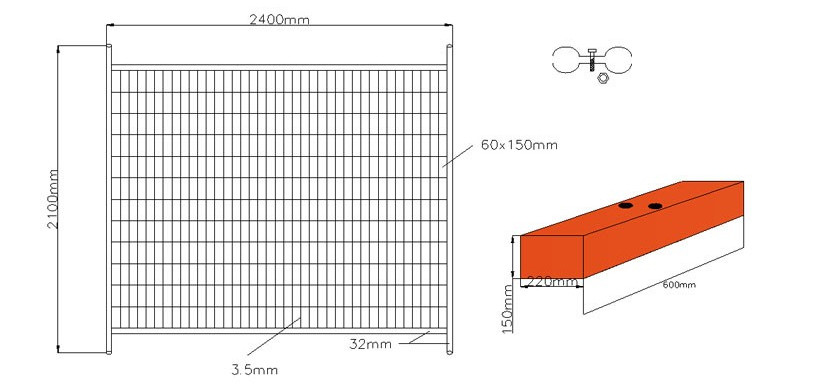

    Construction fence panel drawing:


    Australia Light Duty Outdoor Construction 3.0mm Temporary Fence Panel

    Construction fence panel advantage:


    (1) Galvanized or pvc coated anti corrosion form, anti rust and corrosion resistance.
    (2) 360 degree firmly welded, high strength
    (3) Heavy duty, durable
    (4) Removable and portable, easily for installion.


    Construction fence panel details:


    Australia Light Duty Outdoor Construction 3.0mm Temporary Fence PanelAustralia Light Duty Outdoor Construction 3.0mm Temporary Fence Panel
