ISO-2001 Steel Chain Link Fencing , 3.65m High Metal Chain Link Gate

Ask Lasest Price
Brand Name :	Fansi
Model Number :	Fansi-chain link fence 001
Certification :	CE ISO-2001
Price :	US$10-US$15 1000 rolls
Payment Terms :	L/C, T/T
Supply Ability :	5000 rolls per Month
Delivery Time :	25-30 working days

Add to Cart

Product Details
Company Profile

ISO-2001 Steel Chain Link Fencing , 3.65m High Metal Chain Link Gate

Factory 3.65mm galvanized wire PVC coated wire Chain link fence

Secure perimeters are necessary for industrial and commercial areas to prevent unauthorised access. Chain link fencing is one of the most widely used on the market. Its strength and durability make it an excellent medium security option.

Product Overviews

Specification of Chain Link Fence

Chain link fence
	Wire Gauge	Width	Length
1″	BWG11,12,13,14	0.5-4m	5-25m
1.5″	BWG8,9,10,11,12,13	0.5-4m	5-25m
2″	BWG8,9,10,11,12	0.5-4m	5-25m
2.5″	BWG8,9,10,11,12	0.5-4m	5-25m
2.25″	BWG8,9,10,11,12	0.5-4m	5-25m
2.375″	BWG8,9,10,11,12	0.5-4m	5-25m
3″	BWG8,9,10,12	0.5-4m	5-25m

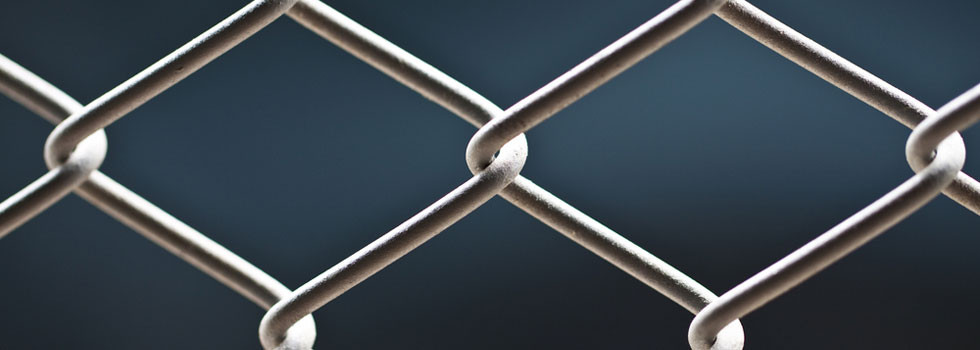

Chain link fence weaving and characteristic

The weaving is simple, artistic anc parctical.
Galvanizing after welding, galvanizing before welding
It is easy to work,bright color, easy to maintain.
Chain link fence netting are the first choose for beautifying the city environment

a.Details of Galvanized Chain Link Fence

mesh (mm)	wire guage (SWG)	Wire Diameter (mm)	Weight Kg/m2	Coil Diameter
				(cm)
				Natural volume	Fold volume
200*200	8	4.06	1	60	35
150*150	10	3.25	0.9	55	32
100*100	9	3.66	1.7	55	35
80*80	10	3.25	1.68	57	38
60*60	12	2.64	1.5	52	34
50*50	12	2.64	1.83	49	33
40*40	10	3.25	3.56	46	32
30*30	12	2.64	3.25	42	34
20*20	19	1.02	0.7	25	34

(1) Knuckle-Knukle:
The wire is knuckled at both ends and abbreviated as(KK)
(2) Knuckle-Barbed:
The wire is knuckled at the bottom and twisted into a barbed selvedge at the top and is abbreviated as (KB)
(3) Barbed-Barbed:
The wire is twisted in to a barbed selvedge at both ends and is abbreviated as(BB)

b.Details of PVC Coated Chain Link Fence

mesh (mm)	wire guage (SWG)	Wire Diameter (mm)	Weight Kg/m2	Coil Diameter
				(cm)
				Natural volume	Fold volume
80×80	8	3.0/4.06	1.72	65	40
60×60	9	2.6/3.66	1.75	59	38
55×55	10	2.2/3.25	1.38	54	35
50×50	10	2.2/3.25	1.67	49	35
45×45	8	3.0/4.0	3.2	50	35
40×40	10	2.2/3.25	2	45	34
35×35	12	2.0/2.64	1.9	40	30

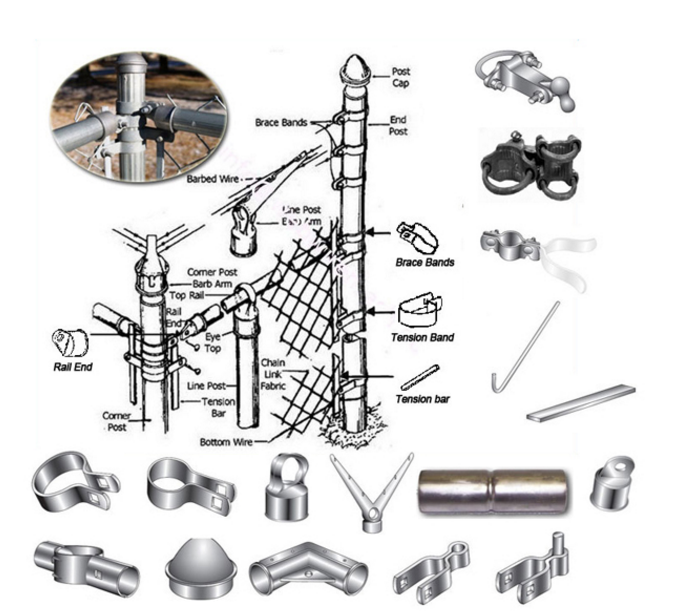

The accessories of Chain link fence

Flat iron : support
Brace band :link tensioner & post
Tension band : Link the flat iron & post
Tensioner : secure the line wire chain link fence
Line wire : Folding the chain link mesh
Tie wire & Stirrup wire :secure the line wire & post and secure the post and the mesh

Chain link fence application

Commercial grounds (Corporation, hotel, supermarket);
Private grounds (Courtyard, Villadom);
Public grounds (Park, zoo, train or bus station, lawn);
Road and transit (Highway, railway or road city transit);
chain link fence is used as fencing, decoration or protection for various facilities in industry,agriculture, infrastructure, transport, etc.

Production process

Packing and delivery

LCL: packed with plastic film then on the pallets
FCL: Nude packing
Other special package according to customers' requirements.
